Product Detailed Parameters
- Description：RF FILTER BAND PASS 60MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：60MHz Center
- Bandwidth：16MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.750" L x 1.000" W (69.85mm x 25.40mm)
- Height (Max)：0.762" (19.35mm)
Download product information
Overview

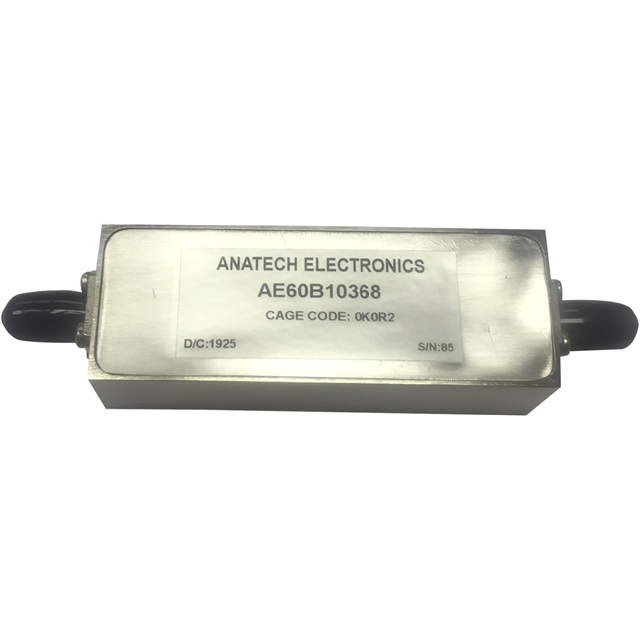

The AE60B10368 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 60MHz and provides a bandwidth of 16MHz. The module exhibits an insertion loss of 1.3dB. It utilizes SMA connectors for interface connections, ensuring compatibility with standard RF systems requiring precise signal filtering in the specified low-frequency range.
Feature Summary
- Provides selective band pass filtering centered at 60MHz
- Features a defined 16MHz operational bandwidth
- Incorporates SMA connectors for reliable interfacing
Applications
- Radio frequency signal processing
- Communication system filtering
- Test and measurement equipment
Procurement Notes
Verify the specific connector type and mounting configuration against your system requirements before ordering. Confirm that the 60MHz center frequency and 16MHz bandwidth align with your design specifications. Ensure the SMA interface matches your existing cabling infrastructure to guarantee proper integration and signal integrity within the application.
Selection Notes
Select this component when a fixed 60MHz center frequency with 16MHz bandwidth is required. The 1.3dB insertion loss indicates efficient signal transmission within the passband. Consider the SMA connector type for ease of integration into standard RF test setups or communication modules where these specific frequency parameters are critical for performance.
Part Context
Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces both standard and custom solutions for military and commercial applications. The AE60B10368 represents their capability to deliver precise filtering components for specific frequency bands, supporting various electronic system requirements through dedicated engineering and production processes.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Users should consult Anatech Electronics directly for potential alternatives or custom designs if exact replacement is necessary.
