AE60B11176

Overview

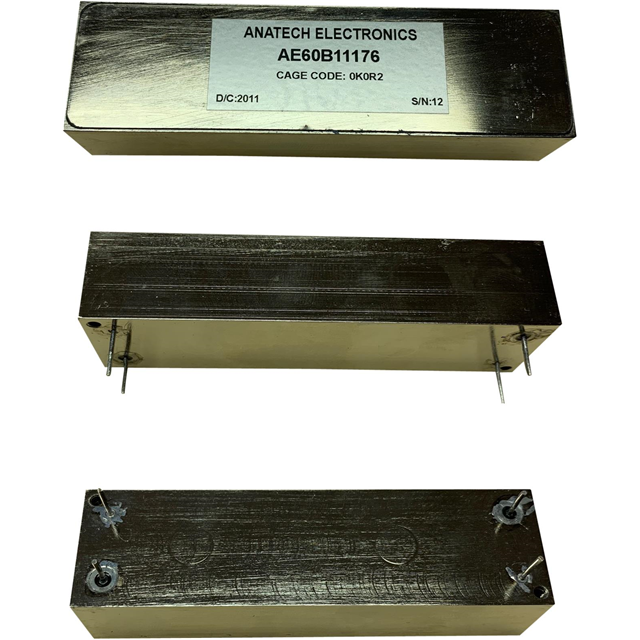

The AE60B11176 is a 60 MHz center frequency LC band pass filter manufactured by Anatech Electronics Inc. It features a 4 MHz bandwidth and an insertion loss of 5.5 dB. The component is housed in a 4-DIP module package designed for through-hole mounting. Maximum height is 0.750 inches (19.05 mm). It operates within the 0.3 to 300 MHz range typical for this product line.

Feature Summary

• LC band pass filtering architecture
• Through-hole DIP module construction
• Fixed 60 MHz center frequency design

Applications

• Radio frequency signal processing
• Microwave filter applications
• Military communication systems
• Commercial RF equipment

Procurement Notes

Verify the specific part number AE60B11176 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with required center frequency, bandwidth, and insertion loss parameters. Confirm package type and mounting requirements before procurement.

Selection Notes

Select this component when a fixed 60 MHz center frequency with 4 MHz bandwidth is required. Consider the 5.5 dB insertion loss and 4-DIP package constraints. Evaluate suitability for military or commercial RF environments based on manufacturer standards.

Part Context

Anatech Electronics Inc. manufactures standard and custom RF filters for military and commercial use. This model belongs to the 0.3-300 MHz LC band pass filter series. The company is located in Garfield, NJ.

Replacement Considerations

AE60B11245 shares the 60 MHz center frequency but offers a 20 MHz bandwidth instead of 4 MHz. Verify if the wider bandwidth meets application requirements.
