AE610B11168

Overview

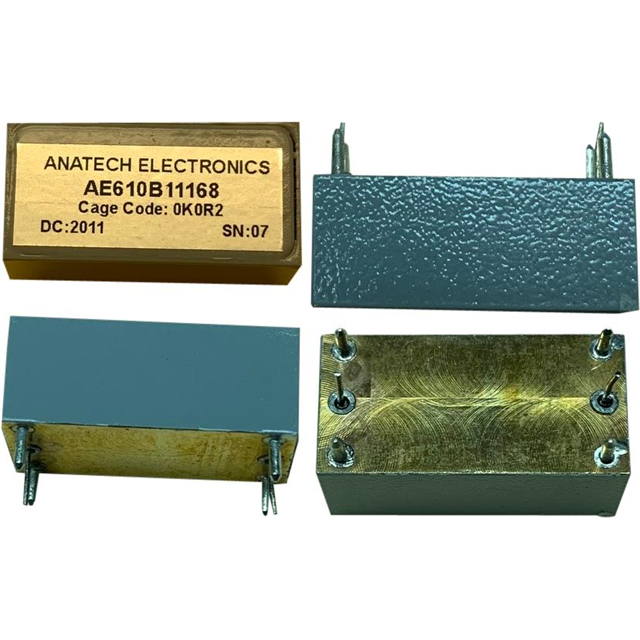

The AE610B11168 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 610 MHz with an 8 MHz bandwidth. The component exhibits a 9.5 dB insertion loss and 0.25 dB ripple. It utilizes a 6-DIP module package designed for through-hole mounting.

Feature Summary

• Bandpass filtering capability centered at 610 MHz
• Through-hole mounting configuration via 6-DIP module

Applications

• Radio frequency signal processing
• Communication systems requiring specific frequency selection

Procurement Notes

Verify the manufacturer part number AE610B11168 against official Anatech Electronics Inc. documentation to confirm specifications. Ensure compatibility with 6-DIP through-hole assembly processes. Check datasheet for precise electrical tolerances and thermal ratings before integration into final designs.

Selection Notes

Select this component when a fixed 610 MHz center frequency with 8 MHz bandwidth is required. Consider the 9.5 dB insertion loss impact on system gain. The 6-DIP package dictates PCB layout constraints for through-hole technology implementation.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter series, specifically designed for bandpass applications in the VHF/UHF range. The 6-DIP form factor provides a standardized footprint for automated or manual insertion into printed circuit boards.

Replacement Considerations

Consult official substitution lists from Anatech Electronics Inc. for verified equivalents. Ensure replacement parts match the 610 MHz center frequency, 8 MHz bandwidth, and 6-DIP package dimensions.
