Product Detailed Parameters
- Description：RF FILTER BAND PASS 634.5MHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：634.5MHz Center
- Bandwidth：15MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：14.953" L x 5.169" W (379.80mm x 131.30mm)
- Height (Max)：3.780" (96.00mm)
Download product information
Overview

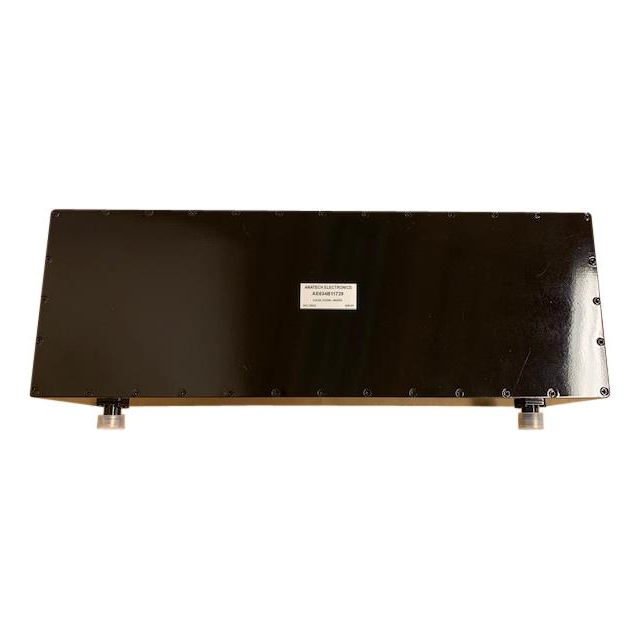

The AE634B11729 is a cavity band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 634.5 MHz and provides a bandwidth of 15 MHz. The component exhibits an insertion loss of 2 dB. This RF filter module is designed for radio frequency applications requiring precise signal selection within the specified frequency range.
Feature Summary
- Cavity construction for stable RF performance
- Band pass filtering capability
- Module form factor
Applications
- Radio frequency signal processing
- Communication systems
- Aerospace applications
- Defense electronics
Procurement Notes
Verify the exact part number AE634B11729 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and insertion loss. Confirm package type and mounting details before procurement. Check for any specific ordering suffixes that may alter electrical characteristics or physical dimensions.
Selection Notes
Select this component when a 634.5 MHz center frequency with 15 MHz bandwidth is required. Consider the 2 dB insertion loss in link budget calculations. Evaluate cavity construction benefits for stability. Compare against other Anatech models if different frequencies or bandwidths are needed. Verify application suitability for aerospace or defense environments.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters for commercial, aerospace, and defense sectors. Founded in 1990, the company designs standard and custom components. The AE634B11729 belongs to their cavity band pass filter lineup, supporting precise frequency selection in demanding RF environments.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model. Consult Anatech Engineering for potential spec matches or custom designs if direct replacement is unavailable.
