AE634B11736

Overview

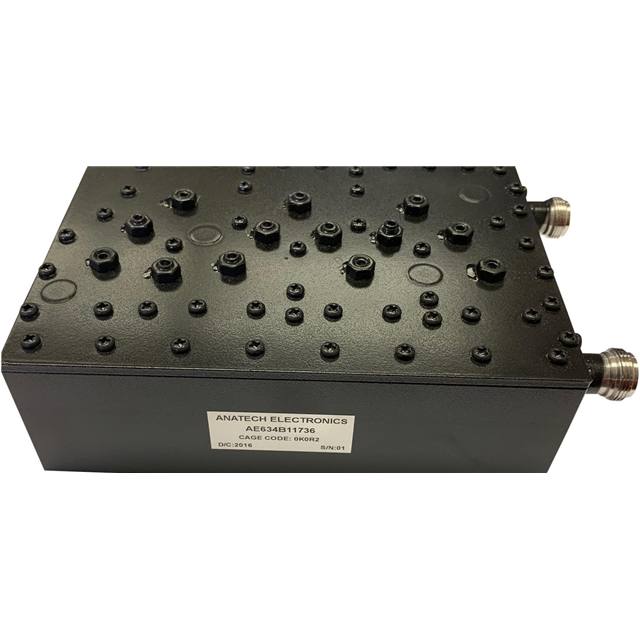

The AE634B11736 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 634 MHz with a bandwidth of 35 MHz. The component features a maximum insertion loss of 1 dB and a minimum return loss of 17 dB. Physical dimensions are 6.299 inches in length and 4.331 inches in width, equivalent to 160.00 mm by 110.00 mm.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 634 MHz
• Low insertion loss design

Applications

• Radio frequency signal processing
• Communication system interference suppression
• RF module integration

Procurement Notes

Verify the exact center frequency specification against official datasheets, as sources vary between 634 MHz and 634.5 MHz. Confirm physical mounting requirements due to the specific cavity module dimensions. Ensure compatibility with existing RF infrastructure before procurement.

Selection Notes

Select this component when a fixed center frequency near 634 MHz is required. Consider the 35 MHz bandwidth for signal isolation needs. Evaluate the physical size constraints against available panel space. Verify return loss requirements match system specifications.

Part Context

Anatech Electronics Inc. specializes in RF filters and components. This model belongs to their cavity filter series designed for radio frequency applications. The product line focuses on providing reliable filtering solutions for communication systems.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching center frequency, bandwidth, and physical dimensions exactly.
