Product Detailed Parameters
- Description：RF FILTER HI PASS 6.5GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：6.5GHz (Cutoff)
- Bandwidth：18.5GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.827" L x 0.591" W (21.00mm x 15.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

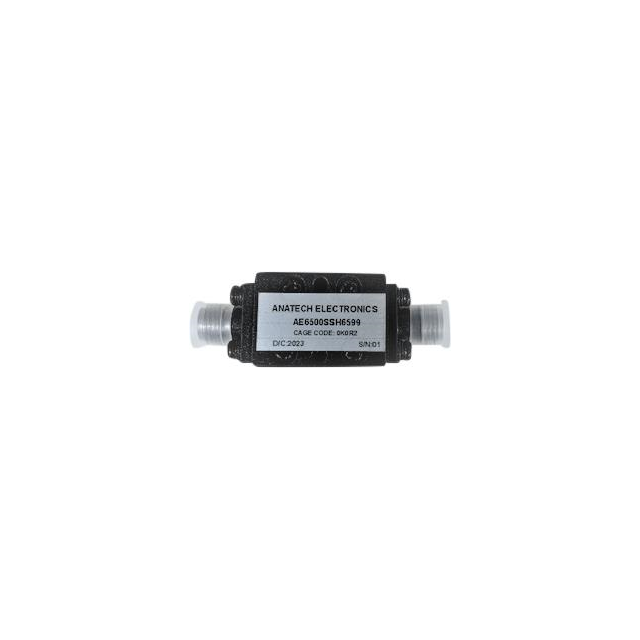

The AE6500SSH6599 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 6.5 GHz and operates within a bandwidth up to 18.5 GHz. The component utilizes suspended stripline technology for signal processing. It is equipped with SMA connectors for interface connectivity. The insertion loss in the passband is specified at 1.5 dB.
Feature Summary
- High-pass filtering capability with a defined cutoff frequency
- Suspended stripline construction for stable RF performance
- Integrated SMA connectors for modular integration
Applications
- RF signal conditioning modules
- Microwave communication systems
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm connector polarity and mating compatibility with existing system interfaces. Ensure environmental ratings meet operational requirements. Cross-reference part numbers with official manufacturer documentation to avoid substitution errors.
Selection Notes
Select this component when a high-pass response starting at 6.5 GHz is required. The suspended stripline design offers distinct advantages over traditional waveguide or microstrip implementations in specific frequency bands. Evaluate insertion loss specifications against system noise budget constraints. Consider the module form factor for space-constrained RF assemblies.
Part Context
Anatech Electronics specializes in custom and standard RF and microwave filters. This model belongs to their suspended stripline series, designed for applications requiring compact size and reliable performance in the C-band and above. The company focuses on engineering solutions for telecommunications and defense sectors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with any alternative components through detailed electrical simulation and mechanical review prior to procurement.
