Product Detailed Parameters
- Description：RF FILTER LOW PASS 6.5GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：6.5GHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.220" L x 0.906" W (31.00mm x 23.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

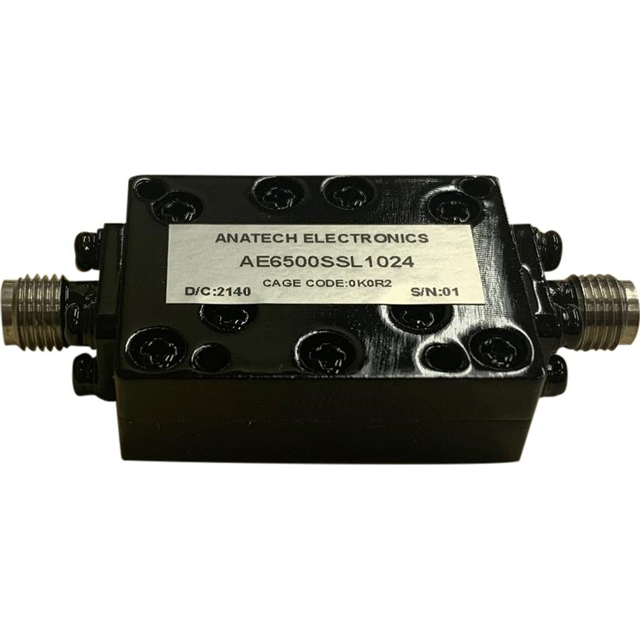

The AE6500SSL1024 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 6.5 GHz and a bandwidth defined at 1.5 dB. The component is housed in a compact module format equipped with SMA connectors, facilitating direct integration into radio frequency signal chains.
Feature Summary
- Low-pass filtering capability for RF applications
- Compact module construction
- SMA connector interface
Applications
- RF signal chain integration
- Radio frequency systems
- Microwave applications
Procurement Notes
Verify the specific part number AE6500SSL1024 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with system requirements regarding cutoff frequency and connector type before procurement.
Selection Notes
Select this component for applications requiring a 6.5 GHz low-pass response. Confirm that the SMA connector interface meets system interconnect needs. Validate performance parameters against specific design constraints using manufacturer data.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their line of standard and custom radio frequency components designed for military and commercial use.
FAQ
What is the cutoff frequency?
The cutoff frequency is 6.5 GHz.
What type of connectors are used?
The filter uses SMA connectors.
