Product Detailed Parameters
- Description：RF FILTER LOW PASS 650MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：650MHz (Cutoff)
- Bandwidth：650MHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：4.000" L x 0.600" W (101.60mm x 15.24mm)
- Height (Max)：0.512" (13.00mm)
Download product information
Overview

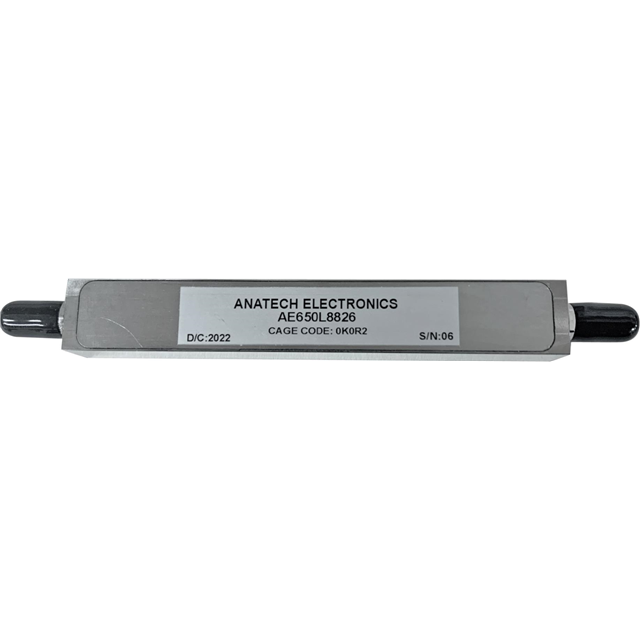

The AE650L8826 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 650MHz and a bandwidth of 650MHz with a 1dB specification. The component utilizes SMA connectors for interface connections.
Feature Summary
- Low-pass filtering capability
- SMA connector interface
Applications
- Defense communications
- Commercial communications
- Aerospace applications
Procurement Notes
Verify the specific datasheet version and manufacturer documentation to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with system requirements before procurement, as specifications may vary by production batch or revision.
Selection Notes
Select this component for applications requiring a 650MHz low-pass response. Confirm that the SMA connector type matches the system interconnect needs. Validate performance against specific defense or commercial communication standards.
Part Context
Anatech Electronics Inc. designs and manufactures RF and microwave filters for defense and commercial communications. The company offers product families including bandpass and low-pass filters, covering frequencies up to 40 GHz.
FAQ
What is the cutoff frequency of the AE650L8826?
The cutoff frequency is 650MHz.
What type of connectors does the AE650L8826 use?
It uses SMA connectors.
