AE6525N2249

Overview

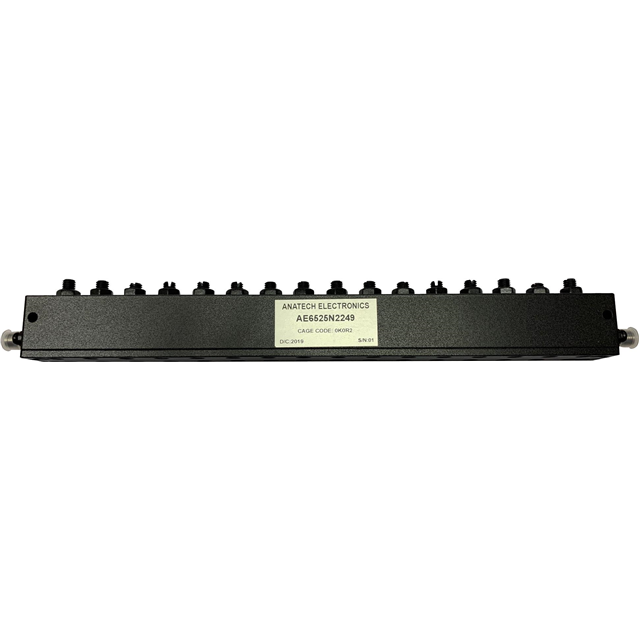

The AE6525N2249 is a waveguide band stop filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 6525 MHz and provides a bandwidth of 1.2 GHz. The device features SMA connectors and is housed in a module package. Electrical specifications include a stop band frequency range of 5925-7125 MHz, with a minimum stop band attenuation of ≥40dB. The low side passband frequency extends from DC to 5770 MHz.

Feature Summary

• Provides high attenuation within the specified stop band frequency range
• Utilizes waveguide technology for RF filtering applications
• Equipped with SMA connectors for interface compatibility

Applications

• Radio frequency signal processing
• Communication systems requiring notch filtering
• Test and measurement equipment

Procurement Notes

Verify the specific electrical parameters against the official datasheet before procurement. Confirm that the SMA connector type and waveguide dimensions match your system requirements. Ensure the manufacturer is Anatech Electronics Inc. to guarantee component authenticity and performance consistency.

Selection Notes

Select this component when a fixed center frequency of 6525 MHz is required. Consider the 1.2 GHz bandwidth and ≥40dB attenuation capabilities for your design. Verify physical dimensions and mounting constraints as it is a module with SMA connectors.

Part Context

This part belongs to the category of RF filters, specifically band stop or notch filters. Anatech Electronics Inc. specializes in such components for microwave and radio frequency applications. The model number indicates specific frequency and configuration details unique to this product line.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
