AE659B1372

Overview

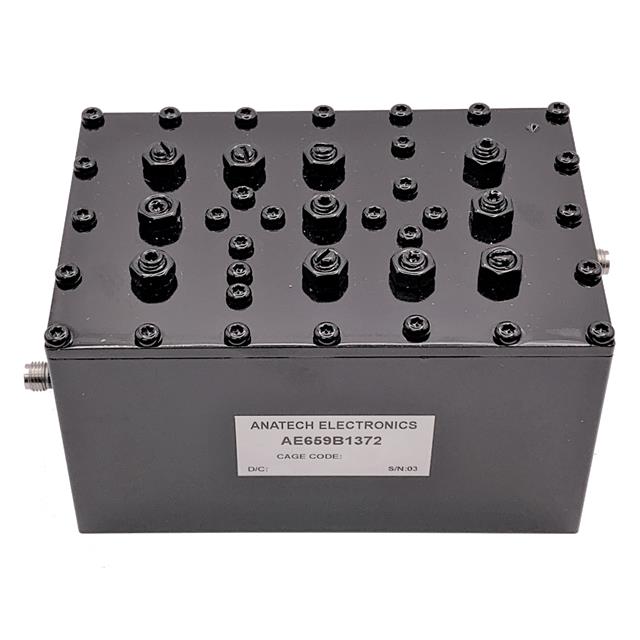

The AE659B1372 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 659 MHz and provides an insertion loss of less than 1.0 dB. The component features an 18 MHz bandwidth and supports a frequency range of 650-668 MHz. It utilizes SMA connectors for interface connections.

Feature Summary

• Cavity construction for stable RF performance
• Low insertion loss design
• SMA connector interface

Applications

• RF signal filtering in communication systems
• Microwave circuit integration
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector orientation. Ensure environmental ratings match operational requirements. Confirm RoHS status if restricted substances are prohibited in your assembly process. Cross-reference ECCN classification for export compliance needs.

Selection Notes

Select this model when a fixed 659 MHz center frequency is required. The low insertion loss specification suits applications demanding minimal signal attenuation. Verify that the SMA interface matches existing board layouts. Consider thermal management if operating near maximum power limits.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters ranging from 100 kHz to 20 GHz. This company produces cavity-based components designed for high stability and precision. The AE659B1372 belongs to their standard cavity band pass filter lineup, offering reliable performance for specialized frequency bands.

Replacement Considerations

Check manufacturer cross-reference lists for direct equivalents. Verify that any substitute maintains the 659 MHz center frequency and 18 MHz bandwidth. Ensure mechanical footprint compatibility with existing mounting structures.
