AE660B11166

Overview

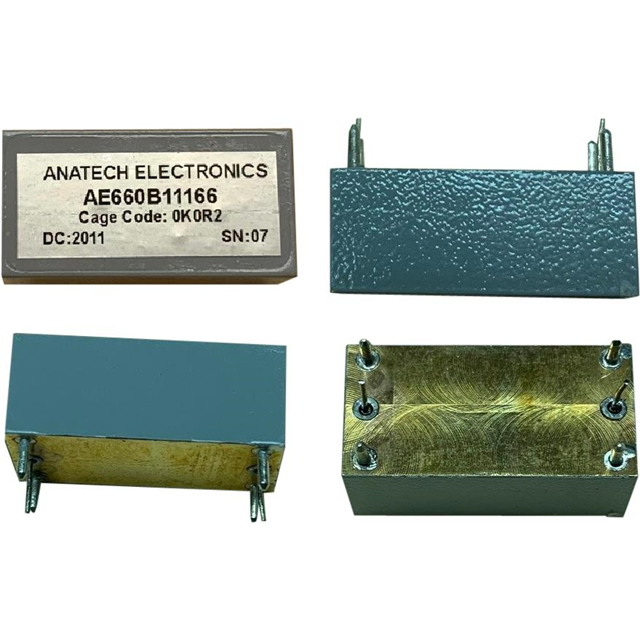

The AE660B11166 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 660 MHz and features a 3 dB bandwidth of 8 MHz, covering the passband range from 656 MHz to 664 MHz. The component exhibits a maximum insertion loss of 9.5 dB at the center frequency. It is housed in a 6-DIP module package designed for through-hole mounting.

Feature Summary

• Provides selective signal filtering within the specified radio frequency band
• Utilizes a 6-DIP module form factor for standard circuit integration
• Designed for through-hole mounting on printed circuit boards

Applications

• Radio frequency signal processing circuits
• Communication system intermediate frequency stages
• Test and measurement equipment filtering

Procurement Notes

Verify the specific datasheet version for the AE660B11166 to confirm exact electrical tolerances and mechanical dimensions before integration. Ensure that the 6-DIP pin configuration matches the target PCB footprint. Confirm compliance requirements such as RoHS status if applicable to the final assembly specifications.

Selection Notes

Select this component when a fixed center frequency of 660 MHz is required with an 8 MHz bandwidth. Consider the 9.5 dB insertion loss impact on system gain budget. The 6-DIP package dictates the physical layout constraints and mounting method for the design.

Part Context

This part belongs to the Anatech Electronics Inc. line of discrete RF bandpass filters. These components are engineered for stable performance in radio frequency applications requiring precise frequency selection. The series typically offers various center frequencies and bandwidth configurations to suit different communication standards.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Verify compatibility with existing designs carefully if considering alternative manufacturers.
