AE66B11185

Overview

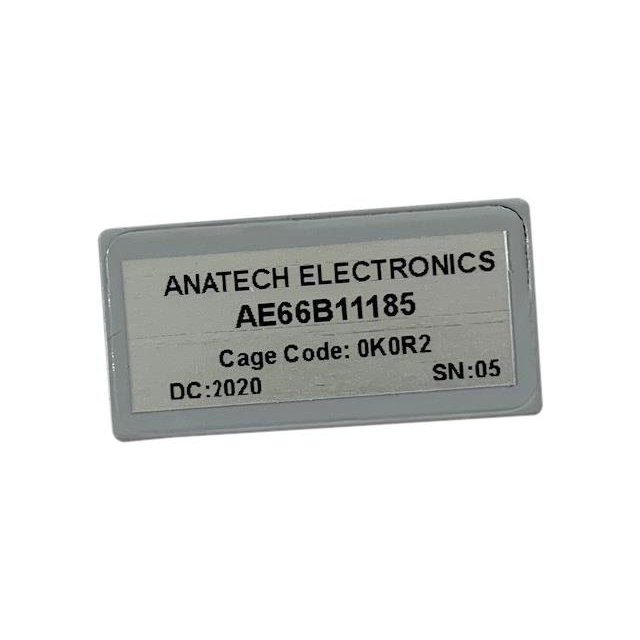

The AE66B11185 is a 66 MHz LC band pass RF filter manufactured by Anatech Electronics Inc. It features a 6-DIP package with RF pins for connection. The component exhibits an insertion loss of less than 1.0 dB within the passband. At 65 MHz, the attenuation is specified as greater than 3.0 dB. This module is designed for radio frequency signal filtering applications requiring precise center frequency selection and low signal degradation.

Feature Summary

• LC band pass filter design for RF signal conditioning
• Low insertion loss performance in the passband
• 6-DIP module form factor with RF pin connectors

Applications

• Radio frequency circuit filtering
• Signal processing modules
• Communication equipment front-ends

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances and mechanical dimensions before integration. Confirm that the 6-DIP package footprint matches the target PCB layout. Ensure the operating environment does not exceed the component's rated specifications. Cross-reference the part number with official manufacturer documentation to confirm availability and current manufacturing status.

Selection Notes

Select this component when a fixed 66 MHz center frequency is required with minimal signal loss. The LC topology offers specific filtering characteristics suitable for narrowband applications. Consider the 6-DIP package size for board space constraints. Verify that the attenuation requirements at adjacent frequencies align with the 3.0 dB specification at 65 MHz.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. The AE66B11185 belongs to their line of LC band pass filters. These components are engineered for stable performance in radio frequency environments. The product series typically includes various center frequencies and bandwidth options for diverse communication needs.

Replacement Considerations

Consult the official Anatech Electronics Inc. catalog for direct substitutes with identical electrical parameters. Verify compatibility with existing PCB footprints if considering alternative packages. Ensure any replacement maintains the same 66 MHz center frequency and insertion loss characteristics.
