AE680B11699

Overview

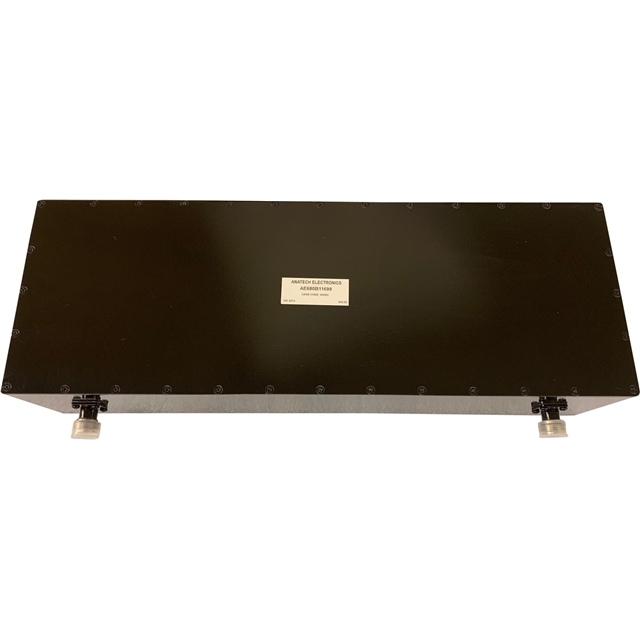

The AE680B11699 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 680.5 MHz and provides a bandwidth of 15 MHz. The module exhibits an insertion loss of 2 dB. This component is designed for radio frequency signal processing applications requiring precise frequency selection within the specified operational range.

Feature Summary

• Cavity construction for stable RF filtering performance
• Band pass configuration centered at 680.5 MHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Communication systems requiring 680.5 MHz filtering

Procurement Notes

Verify the specific part number AE680B11699 against official Anatech Electronics Inc documentation to confirm electrical specifications, including the 680.5 MHz center frequency and 15 MHz bandwidth. Ensure compatibility with system impedance and mounting requirements before procurement.

Selection Notes

Select this component when a fixed center frequency of 680.5 MHz with a 15 MHz bandwidth is required. Consider the 2 dB insertion loss and cavity construction type for system loss budgets and physical integration constraints in RF designs.

Part Context

This component belongs to the Anatech Electronics Inc. cavity band pass filter series, which covers frequencies from 0.1 to 47 GHz. The AE680B11699 is specifically designated for the 680.5 MHz band, distinct from adjacent models like the AE680B11641 which offers a wider 35 MHz bandwidth at the same center frequency.

Replacement Considerations

The AE680B11641 serves as a substitute option if a wider 35 MHz bandwidth is acceptable while maintaining the 680.5 MHz center frequency. Verify mechanical dimensions and electrical tolerance differences before substitution.
