Product Detailed Parameters
- Description：RF FILTER BAND PASS 6.85GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：6.85GHz Center
- Bandwidth：20MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.402" L x 0.984" W (61.00mm x 25.00mm)
- Height (Max)：0.709" (18.00mm)
Download product information
Overview

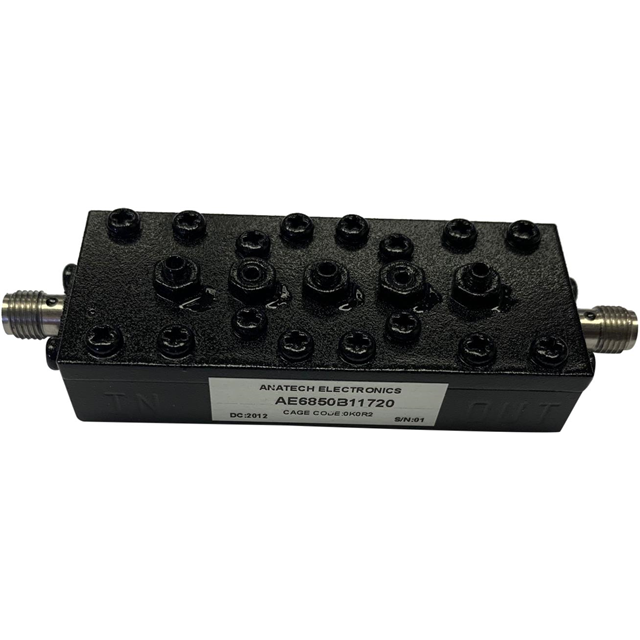

The AE6850B11720 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 6.85GHz and provides a bandwidth of 20MHz. The component features an insertion loss of 2dB and utilizes SMA connectors for interface connections. Designed as a module, it supports chassis mounting for integration into radio frequency systems requiring precise signal filtering at this specific microwave frequency.
Feature Summary
- Cavity construction for stable band pass performance
- SMA connector interfaces for standard RF integration
- Chassis mount design for secure system installation
Applications
- Radio frequency signal processing
- Microwave communication systems
- Test and measurement equipment
Procurement Notes
Verify the exact part number AE6850B11720 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with SMA connectors and chassis mounting requirements. Confirm that the 6.85GHz center frequency and 20MHz bandwidth meet system needs. Check for any specific handling or installation guidelines provided in the manufacturer datasheet before procurement.
Selection Notes
Select this component when a fixed 6.85GHz center frequency with 20MHz bandwidth is required. The 2dB insertion loss and SMA connectors define the electrical and mechanical interface. Chassis mounting dictates the physical integration method. Verify that the cavity technology meets the stability requirements of the application environment compared to other filter types.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity band pass filter series. These components are designed for applications requiring high selectivity and stability. The company focuses on custom and standard RF solutions for various industries.
FAQ
What type of connectors does the AE6850B11720 use?
The AE6850B11720 uses SMA connectors for its RF interfaces.
Is the AE6850B11720 designed for surface mount or chassis mounting?
The AE6850B11720 is designed for chassis mounting.
