AE690B11698

Overview

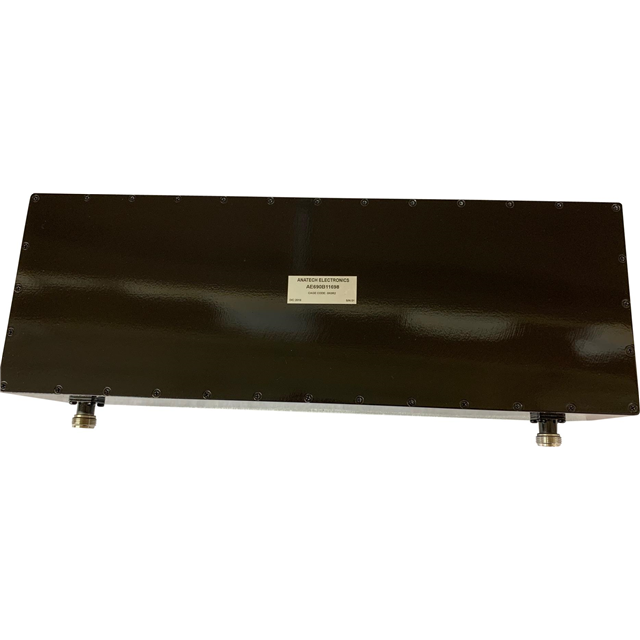

The AE690B11698 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 690.5 MHz and provides a bandwidth of 15 MHz. The component features an insertion loss of 2 dB. This module is designed for radio frequency applications requiring precise signal filtering within the specified frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 690.5 MHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Communication system filtering

Procurement Notes

Verify the exact datasheet version from Anatech Electronics Inc. before procurement. Confirm mechanical dimensions and mounting requirements match your design constraints. Ensure the 690.5 MHz center frequency aligns with your system specifications. Check for any specific handling instructions related to cavity filters.

Selection Notes

Select this component when a 690.5 MHz center frequency and 15 MHz bandwidth are required. Consider the 2 dB insertion loss impact on system gain. Evaluate if the cavity module form factor fits your enclosure space. Compare against other Anatech models if different frequencies or bandwidths are needed.

Part Context

Anatech Electronics Inc. specializes in RF filters, including cavity and waveguide components. The AE690B11698 belongs to their line of band pass filters designed for specific frequency applications. These components are typically used in professional RF systems where high selectivity and stability are critical.

Replacement Considerations

No publicly confirmed substitute part numbers are available for the AE690B11698. Any replacement must match the 690.5 MHz center frequency, 15 MHz bandwidth, and 2 dB insertion loss specifications precisely. Consult Anatech Electronics Inc. for potential alternatives.
