AE70LB12065

Overview

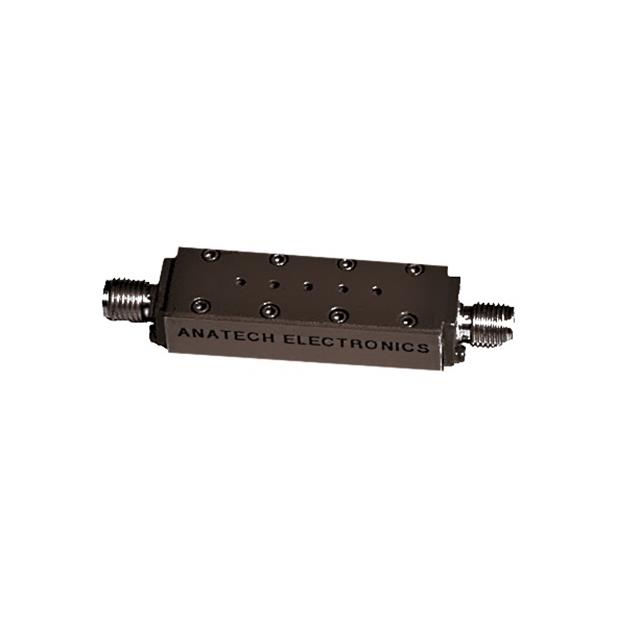

The AE70LB12065 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 70 MHz and provides a bandwidth of 40 MHz. The component features an insertion loss of 1 dB and utilizes SMA connectors for in-line module integration.

Feature Summary

• Bandpass filtering capability centered at 70 MHz
• Low insertion loss performance of 1 dB
• SMA connector interface for direct in-line installation

Applications

• Radio frequency signal processing
• Communication system filtering
• Test and measurement equipment

Procurement Notes

Verify the specific part number AE70LB12065 against official Anatech Electronics documentation to confirm the 70 MHz center frequency and 1 dB insertion loss specifications. Ensure compatibility with SMA connector requirements for your application design before procurement.

Selection Notes

Select this component when a narrowband filter at 70 MHz with minimal signal attenuation is required. The 40 MHz bandwidth defines the passband range, while the 1 dB insertion loss indicates efficient signal transmission through the filter stage.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom radio frequency filters for military and commercial applications. This company produces various RF and microwave components, including LC and ceramic bandpass filters.
