AE7205B1382

Overview

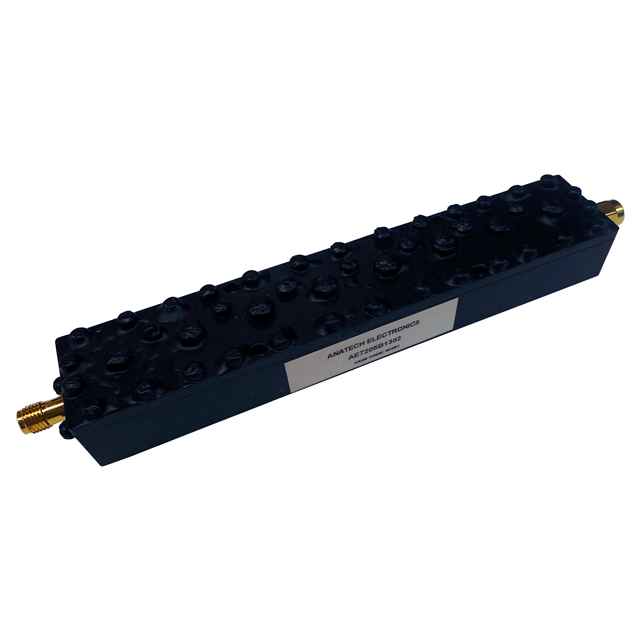

The AE7205B1382 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 7.205 GHz and provides a bandwidth of 45 MHz. The module features SMA connectors for interfacing and exhibits an insertion loss of 2 dB. The physical dimensions are 5.220 inches in length and 0.980 inches in width, equivalent to 132.59 mm by 24.89 mm. This component is designed for radio frequency applications requiring precise signal filtering within the specified microwave range.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface for standard integration
• RoHS compliant manufacturing

Applications

• Radio frequency signal processing systems
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific part number suffix against official Anatech documentation to confirm exact electrical tolerances and connector types. Ensure compatibility with system impedance requirements before procurement. Confirm RoHS compliance status if required by project specifications. Cross-reference manufacturer datasheets for detailed mechanical drawings and thermal considerations.

Selection Notes

Select this component when a fixed center frequency of 7.205 GHz with 45 MHz bandwidth is required. Consider the SMA connector type for interface compatibility. Evaluate the physical footprint constraints against the 5.220 x 0.980 inch dimensions. Assess insertion loss requirements against the 2 dB specification for system budget calculations.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces both standard and custom components for military and commercial applications. This cavity filter represents their capability in delivering precise frequency-selective solutions for high-frequency electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom designs may be requested through Anatech Engineering based on identical specifications.
