Product Detailed Parameters

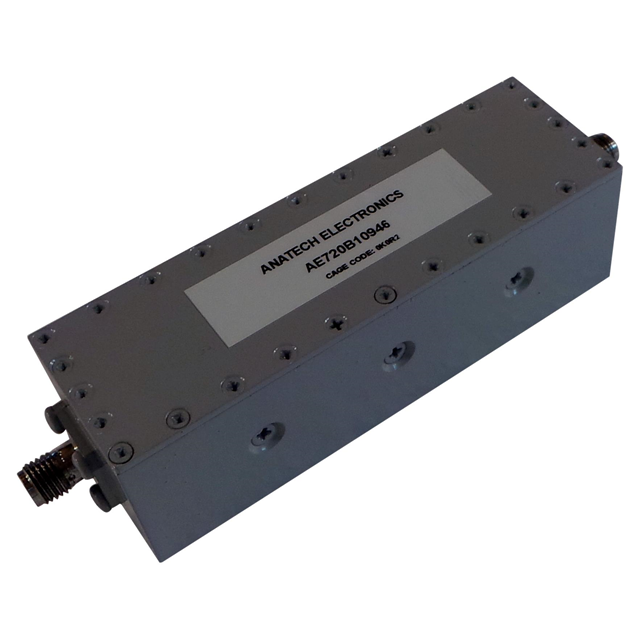

- Description：RF FILTER BANDPASS 720MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：720MHz Center
- Bandwidth：3MHz
- Filter Type：Band Pass
- Ripple：1dB
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：3.200" L x 1.000" W (81.28mm x 25.40mm)
- Height (Max)：1.000" (25.40mm)
Download product information
Overview
The AE720B10946 is a cavity bandpass filter manufactured by Anatech Electronics Inc. designed for radio frequency applications. It operates with a center frequency of 720 MHz and features a bandwidth of 3 MHz. The component utilizes SMA connectors for interface connections. It is classified as a module-type RF filter suitable for specific signal processing requirements within the defined frequency range.
Feature Summary
- Cavity construction for stable RF performance
- Bandpass filtering capability at 720 MHz
- SMA connector interface
Applications
- Radio frequency signal processing
- Communication systems requiring 720 MHz filtering
- RF module integration
Procurement Notes
Verify the exact part number AE720B10946 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with system requirements regarding the 720 MHz center frequency and 3 MHz bandwidth. Check RoHS3 compliance status if environmental regulations apply. Confirm SMA connector type matches existing infrastructure.
Selection Notes
Select this component when a fixed 720 MHz center frequency with narrow 3 MHz bandwidth is required. The cavity design offers specific performance characteristics distinct from other filter technologies. Verify that the SMA interface meets the system's interconnection needs. Consider the module form factor for integration into larger assemblies.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters, including standard and custom designs. The AE720B10946 belongs to their line of cavity bandpass filters. These components are typically used in military and commercial applications where precise frequency selection is critical. The company maintains ISO 9001:2015 certification for quality management.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics engineering database for potential spec-matched alternatives or custom designs if direct replacement is unavailable.
