AE7407B1384

Overview

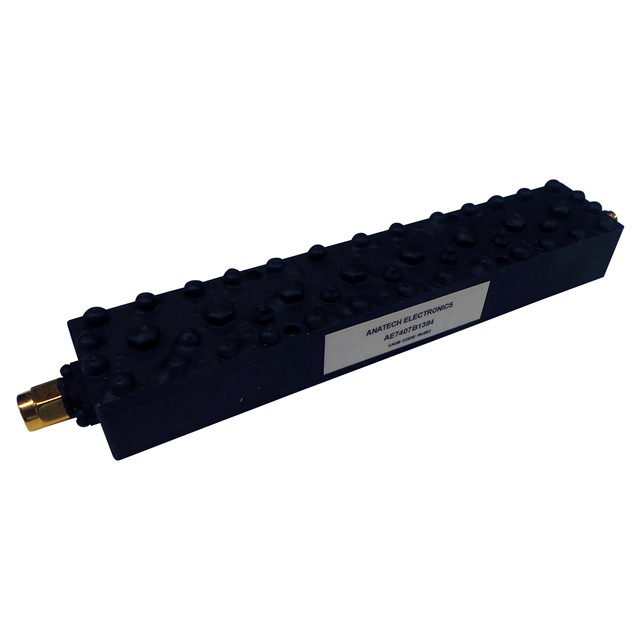

The AE7407B1384 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 7407 MHz with a minimum 3dB bandwidth of 30 MHz. The component features a maximum insertion loss of 2.0 dB at the center frequency and a minimum return loss of 15 dB at 70% of the 3dB bandwidth. It is supplied in a box package and utilizes SMA connectors for interface.

Feature Summary

• Cavity construction for stable RF filtering performance
• Bandpass characteristic centered at 7407 MHz
• SMA connector interface for signal transmission

Applications

• Radio frequency signal processing systems
• Communication equipment requiring specific frequency selection
• Test and measurement instrumentation

Procurement Notes

Verify the exact center frequency and bandwidth requirements against the datasheet specifications before procurement. Confirm that the SMA connector type matches the system interface needs. Ensure the insertion loss and return loss parameters meet the application's signal integrity standards. Check the part status for availability as supply levels may vary.

Selection Notes

Select this component when a fixed center frequency of 7407 MHz is required. Consider the 30 MHz bandwidth constraint for signal width compatibility. Evaluate the 2.0 dB insertion loss impact on system gain budget. Verify physical size constraints if the cavity module form factor is critical for the enclosure design.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter family, specifically designed as a cavity bandpass module. These components are engineered for high-performance radio frequency applications where precise frequency control and low loss are essential. The AE7407B1384 represents a specialized solution for narrowband filtering tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 7407 MHz center frequency, 30 MHz bandwidth, and SMA interface specifications precisely.
