AE748B11731

Overview

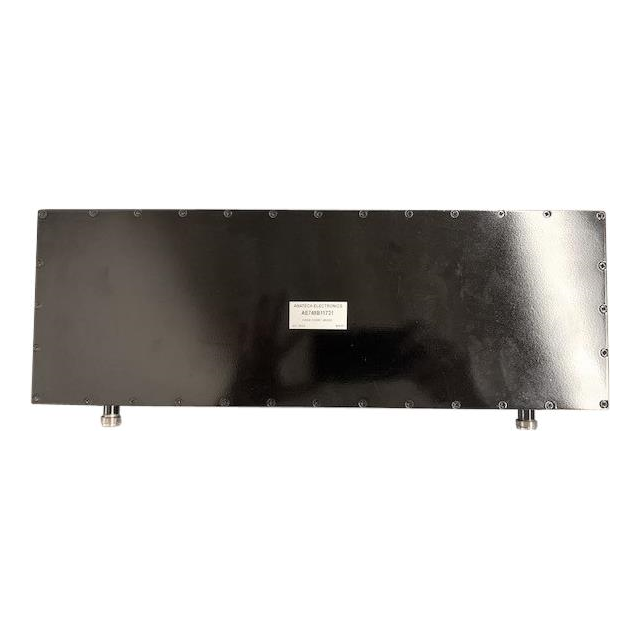

The AE748B11731 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 748.5 MHz and features a bandwidth of 5 MHz. The component has an insertion loss of 2.8 dB. It is supplied in a box package configuration.

Feature Summary

• Band pass filtering capability centered at 748.5 MHz
• Defined 5 MHz operational bandwidth
• Module form factor for integration

Applications

• Radio frequency signal processing
• Communication systems requiring specific frequency selection

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the 748.5 MHz center frequency and 2.8 dB insertion loss meet system requirements. Ensure compatibility with existing RF infrastructure and mounting constraints associated with the module form factor.

Selection Notes

Select this component when a narrow 5 MHz bandwidth around 748.5 MHz is required. Consider the 2.8 dB insertion loss impact on system gain. Evaluate if the module packaging suits the intended mechanical assembly and thermal management needs compared to other filter types.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial applications. This part belongs to their standard filter lineup, designed for precise frequency selection in radio frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Anatech Electronics engineering for potential custom design matches or alternative models with similar electrical characteristics.
