AE788B6193

Overview

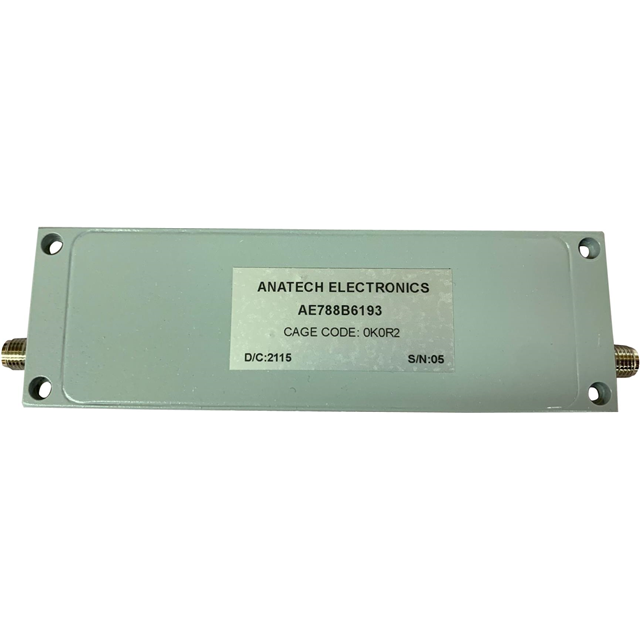

The AE788B6193 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 788 MHz and provides a bandwidth of 375 MHz. The component features an insertion loss of 3 dB and a ripple of 0.1 dB. It utilizes SMA connectors for interface connections. This LC bandpass filter is designed for radio frequency applications requiring specific frequency selection characteristics within the defined operational parameters.

Feature Summary

• Bandpass filtering capability centered at 788 MHz
• LC filter construction for signal conditioning
• SMA connector integration for module interfacing

Applications

• Radio frequency signal processing
• Communication system frequency selection
• RF module integration

Procurement Notes

Verify the exact datasheet version (AE788B6193.pdf) to confirm current electrical specifications and mechanical dimensions. Ensure compatibility with SMA connector types and impedance requirements. Check for RoHS compliance status if required by project standards. Confirm active product status before procurement planning.

Selection Notes

Select this component when a 788 MHz center frequency with 375 MHz bandwidth is required. Consider the 3 dB insertion loss and 0.1 dB ripple specifications for signal integrity needs. Verify that SMA connectors match the system interface requirements. Ensure the LC filter topology suits the application's design constraints.

Part Context

Anatech Electronics Inc. produces RF filters including the AE788B6193 model. This part belongs to their line of bandpass filters designed for specific frequency ranges. The manufacturer provides technical documentation detailing the electrical and mechanical properties necessary for integration into RF systems.

FAQ

What is the center frequency of the AE788B6193?

The center frequency is 788 MHz.

What type of connectors does the AE788B6193 use?

It uses SMA connectors.
