Product Detailed Parameters
- Description：RF FILTER HIGH PASS 8GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：8GHz (Cutoff)
- Bandwidth：20GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.748" L x 0.591" W (19.00mm x 15.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

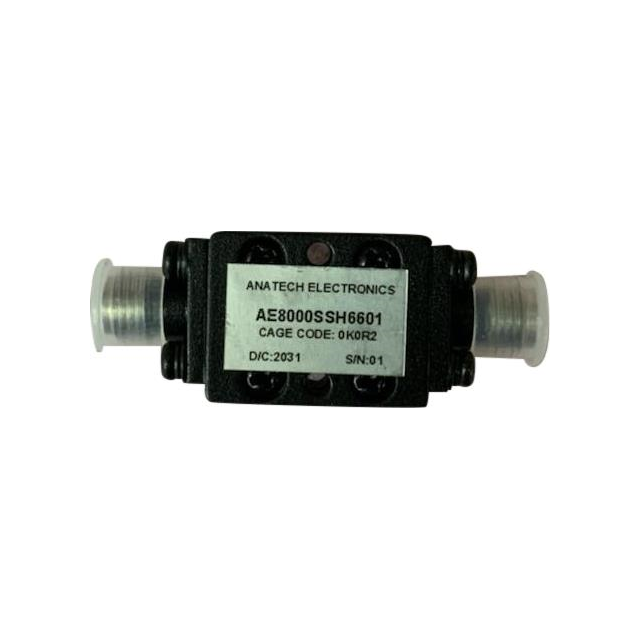

The AE8000SSH6601 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features an 8 GHz cutoff frequency and a bandwidth of 20 GHz. The component exhibits an insertion loss of 1.5 dB and utilizes SMA connectors for interface. Designed as a suspended stripline unit, it supports chassis mounting with a maximum height of 0.394 inches (10.00 mm).
Feature Summary
- Suspended stripline construction for stable RF performance.
- High-pass filtering capability with defined cutoff characteristics.
- Integrated SMA connectors for direct system interfacing.
Applications
- Radio frequency signal processing systems
- Microwave communication equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version to confirm electrical tolerances and mechanical dimensions prior to integration. Ensure that the SMA connector polarity and mating requirements align with the host system design. Confirm RoHS compliance status if required by regulatory standards for the intended deployment environment.
Selection Notes
Select this component when an 8 GHz high-pass response is required within microwave applications. The suspended stripline design offers distinct advantages in power handling and thermal stability compared to planar alternatives. Verify that the 20 GHz bandwidth covers the operational spectrum needs without excessive attenuation in the passband.
Part Context
Anatech Electronics specializes in custom and standard RF and microwave filters. This model belongs to their suspended stripline series, which is engineered for robust performance in demanding radio frequency environments. The company maintains ISO 9001:2015 certification for its manufacturing processes.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Custom designs may be requested through manufacturer engineering databases if exact specifications cannot be met by existing inventory.
FAQ
What is the maximum height of the AE8000SSH6601 module?
The maximum height is 0.394 inches (10.00 mm).
Does this filter use waveguide or coaxial connections?
It uses SMA connectors for connection.
