AE800H9821

Overview

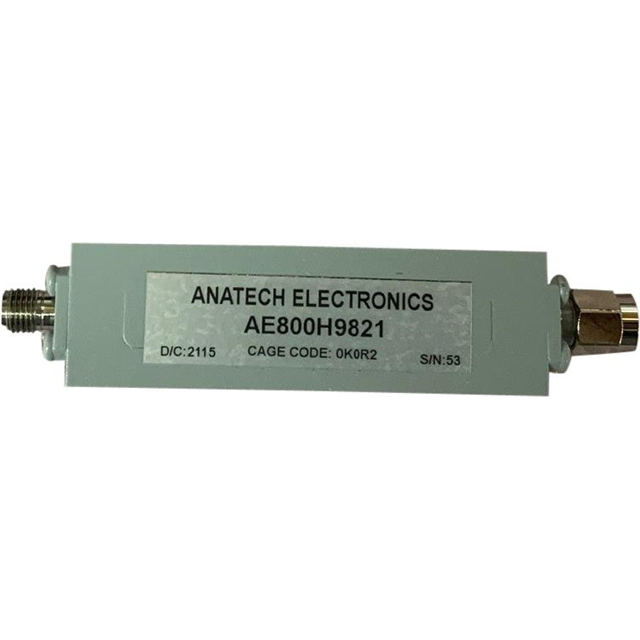

The AE800H9821 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It operates within a passband of 800 MHz to 2200 MHz, with a cutoff frequency specified at 800 MHz. The component features SMA connectors for interface and maintains an insertion loss of less than 2 dB across its operational range. Packaged in a standard box, this active series device is designed for radio frequency applications requiring precise signal filtering.

Feature Summary

• High-pass filtering capability within the 800-2200 MHz frequency range
• Low insertion loss performance under 2 dB
• Integrated SMA connector interfaces for direct system integration

Applications

• Radio frequency signal processing systems
• Communication equipment requiring band-specific filtering
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for detailed electrical characteristics before integration. Confirm that the SMA connector type matches your system requirements. Ensure environmental conditions align with the manufacturer's specifications for optimal performance and longevity of the module.

Selection Notes

Select this model when a high-pass response is required between 800 MHz and 2200 MHz. Consider the <2 dB insertion loss specification for signal integrity needs. Verify compatibility with existing SMA-based infrastructure and ensure the module form factor fits the intended enclosure or test setup constraints.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters and products. This component belongs to their line of high-pass filters, designed for reliable performance in demanding radio frequency environments. The company is based in Garfield, New Jersey, focusing on precision electronic components for specialized industrial and communication applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Users should consult Anatech Electronics directly for potential equivalents or custom solutions if this part is discontinued or unavailable.
