AE807B11750

Overview

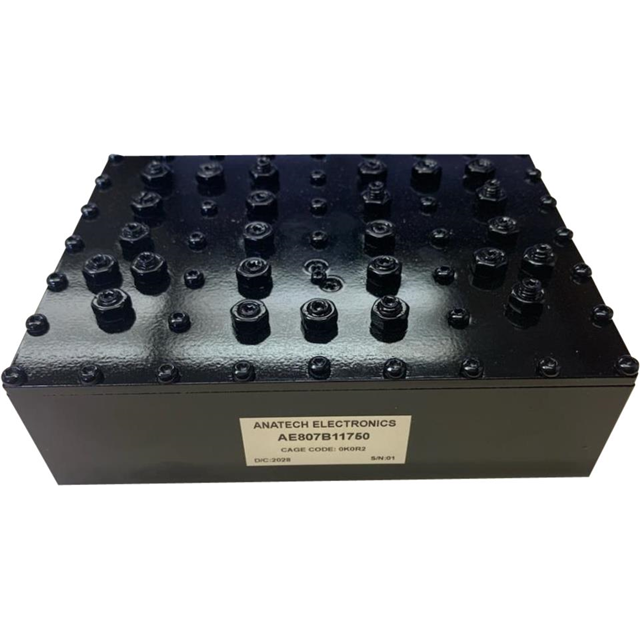

The AE807B11750 is a band pass RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 807.5 MHz and a bandwidth of 215 MHz. The component has an insertion loss of 1.25 dB and utilizes SMA connectors for module interfacing.

Feature Summary

• Band pass filtering capability centered at 807.5 MHz
• Integrated SMA connector interface for module integration

Applications

• Radio frequency signal processing modules
• Military communication systems
• Commercial RF equipment

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and exact mechanical dimensions. Ensure SMA connector compatibility with system requirements before procurement. Confirm lead-free certification if required by project specifications.

Selection Notes

Select this component when a fixed 807.5 MHz center frequency with 215 MHz bandwidth is required. Consider the 1.25 dB insertion loss impact on system sensitivity. Verify that the SMA interface matches existing board or cable infrastructure.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial applications. This part belongs to their standard band pass filter lineup, designed for reliable performance in demanding environments.

Replacement Considerations

Consult official substitution lists from Anatech Electronics Inc. for verified equivalents. Generic replacements may not match the precise 807.5 MHz center frequency or 215 MHz bandwidth specifications.
