Product Detailed Parameters

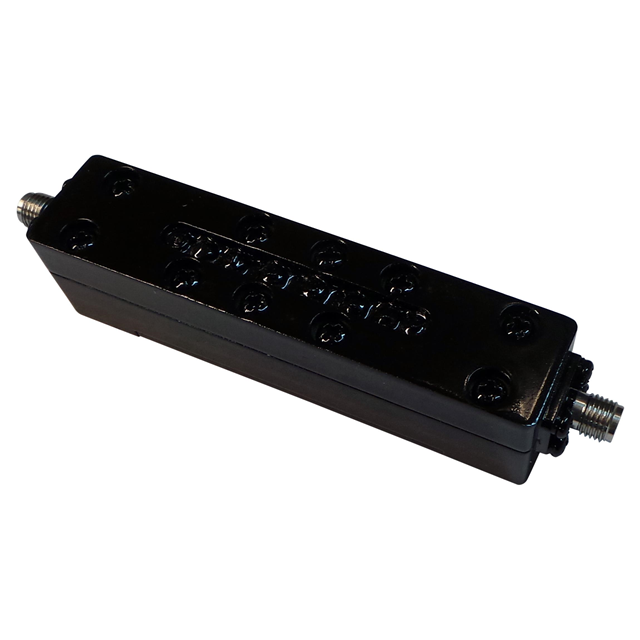

- Description：RF FILTER 8.6GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：8.6GHz Center
- Bandwidth：500MHz
- Filter Type：-
- Ripple：-
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：3.150" L x 0.710" W (80.01mm x 18.03mm)
- Height (Max)：0.790" (20.07mm)
Download product information
Overview
The AE8600NS2211 is an RF band stop filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 8.6 GHz and features a 500 MHz bandwidth. The component utilizes SMA connectors for interface connections. Electrical specifications include a notch rejection of at least 60 dB, with a low-side passband ranging from 30 to 7325 MHz and a high-side passband from 9875 to 18000 MHz.
Feature Summary
- Provides high attenuation within the specified notch frequency range
- Maintains signal integrity in adjacent passbands
- Utilizes SMA connector interfaces for modular integration
Applications
- RF system interference mitigation
- Microwave communication equipment filtering
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version and mechanical dimensions prior to procurement. Confirm that the SMA connector gender and mating requirements align with the host system design. Ensure environmental ratings meet operational conditions. Cross-reference part numbers to avoid confusion with similar series components. Request manufacturer documentation for final electrical validation.
Selection Notes
Select this component when a fixed 8.6 GHz notch filter is required. Consider the 500 MHz bandwidth relative to the interfering signal width. Evaluate insertion loss limits in the passbands against system sensitivity requirements. Verify physical size constraints for the intended enclosure. Assess thermal management needs if operating near power limits.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their band stop filter portfolio. The company designs these components for precise frequency rejection. The product line targets applications requiring stable performance in demanding RF environments. Manufacturing follows ISO 9001:2015 standards.
FAQ
What is the minimum notch rejection specification?
The minimum notch rejection is 60 dB.
What are the defined passband ranges?
The low-side passband is 30-7325 MHz and the high-side passband is 9875-18000 MHz.
