AE860B11308

Overview

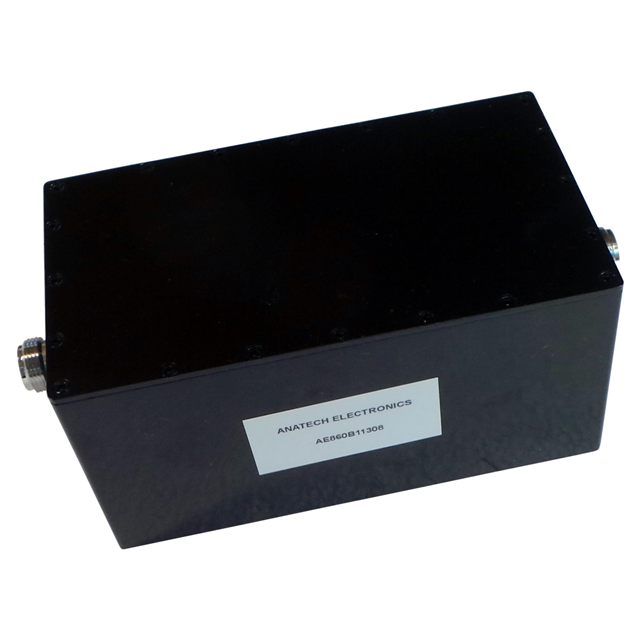

The AE860B11308 is an outdoor cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 860 MHz and provides an 18 MHz bandwidth, covering the 851-869 MHz range. The module features SMA connectors for input and output connections. Key electrical specifications include an insertion loss of 1.4 dB. Designed for robust performance in external environments, this component serves as a specialized filter for radio frequency signal processing within its designated frequency band.

Feature Summary

• Outdoor-rated cavity construction designed for environmental durability
• Bandpass filtering capability centered at 860 MHz
• Integrated SMA connector interface for direct cable attachment

Applications

• Radio frequency signal conditioning in outdoor communication infrastructure
• Frequency selection within the 851-869 MHz operational band
• RF front-end filtering for broadcast or mobile telecommunications systems

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector orientation prior to integration. Ensure that the SMA connector gender matches the system cabling requirements. Confirm that the 1.4 dB insertion loss aligns with the link budget calculations for the intended application. Check for any recent revisions to the electrical specifications that may affect compatibility with existing designs.

Selection Notes

Select this component when a fixed 860 MHz center frequency with narrow 18 MHz bandwidth is required for outdoor deployment. The cavity design offers high selectivity compared to planar alternatives. Consider the SMA interface if standard coaxial connectivity is preferred over waveguide or flange connections. Evaluate the physical size constraints against available mounting space in the equipment enclosure.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including bandpass, low pass, and notch filters. This model belongs to their line of cavity-based components engineered for specific frequency applications. The manufacturer maintains ISO 9001:2015 certification for quality management processes.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 860 MHz center frequency, 18 MHz bandwidth, and SMA connector configuration. Verify that any alternative component meets the same outdoor environmental ratings and insertion loss specifications.
