AE8750.55B11379

Overview

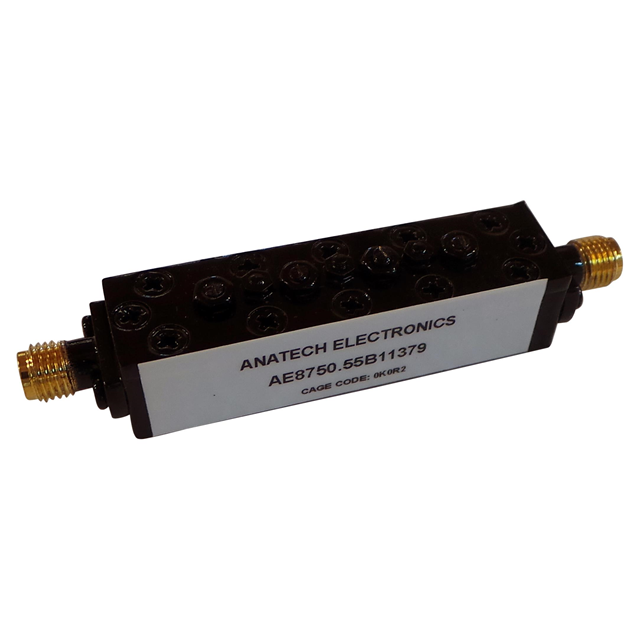

The AE8750.55B11379 is a bandpass RF filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It features a center frequency of 8.75055 GHz and a bandwidth of 25 MHz. The module exhibits an insertion loss of 2 dB and a ripple of 0.05 dB. It utilizes SMA connectors for interface connections and is supplied in box packaging.

Feature Summary

• Provides selective signal transmission within a defined microwave frequency range
• Utilizes SMA connector interfaces for standard RF integration
• Engineered as a modular component for radio frequency filtering

Applications

• Radio frequency signal processing systems
• Microwave communication equipment
• RF test and measurement instrumentation

Procurement Notes

Verify the specific part number AE8750.55B11379 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and connector type before procurement. Confirm product status and availability through authorized channels.

Selection Notes

Select this component when a precise 8.75055 GHz center frequency with 25 MHz bandwidth is required. Consider the 2 dB insertion loss and 0.05 dB ripple specifications for signal integrity needs. Verify that SMA connectors align with existing board or cable infrastructure.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including bandpass, low pass, and high pass configurations for industrial and commercial applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics engineering database for potential spec matches or custom designs if exact replacement is unavailable.
