AE896B11305

Overview

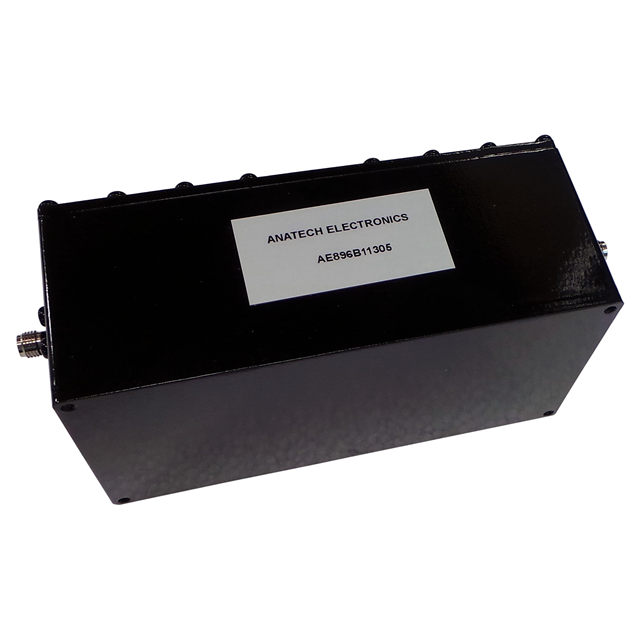

The AE896B11305 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 896 MHz and provides a bandwidth of 93 MHz. The insertion loss is specified as less than 2.0 dB. The operational frequency range spans from 850 MHz to 943 MHz. This component is housed in a module package equipped with SMA connectors.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 896 MHz
• SMA connector interface

Applications

• Radio frequency signal processing
• Microwave communication systems
• Military electronic equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm that the SMA connector type matches the system requirements. Ensure environmental conditions align with the manufacturer's specifications for reliable operation in military or commercial applications.

Selection Notes

Select this component when a fixed center frequency of 896 MHz with a 93 MHz bandwidth is required. The low insertion loss specification makes it suitable for sensitive RF chains. Verify compatibility with existing SMA interfaces and ensure the module form factor fits the available space in the assembly.

Part Context

Anatech Electronics Inc. specializes in standard and custom RF filters for military and commercial sectors. The company produces cavity bandpass filters covering frequencies from 0.1 to 47 GHz. This model belongs to their standard line of microwave components designed for robust performance.

Replacement Considerations

The AE897B11458 is a related cavity bandpass filter from the same manufacturer, offering a different center frequency and bandwidth profile. Evaluate if the alternative frequency characteristics meet the system requirements before substitution.
