AE8H9790

Overview

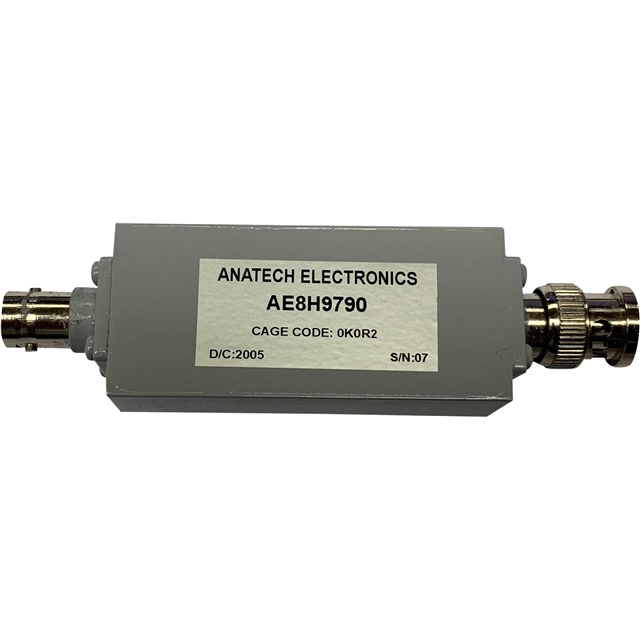

The AE8H9790 is an LC high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 8 MHz and a bandwidth of 232 MHz with 0.5 dB ripple. The component utilizes BNC connectors for in-line module integration.

Feature Summary

• LC high-pass filter design
• BNC connector interface
• In-line module form factor

Applications

• RF signal processing
• Microwave filtering applications

Procurement Notes

Verify the specific datasheet version for precise attenuation curves and power handling limits. Confirm BNC connector gender and mating compatibility with existing test equipment or system interfaces before finalizing procurement to ensure mechanical fit.

Selection Notes

Select this component when an 8 MHz high-pass characteristic is required with BNC connectivity. Ensure the 232 MHz bandwidth meets system spectral requirements. Verify that the LC topology aligns with impedance matching needs.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This part belongs to their line of discrete filter modules designed for general RF applications, distinct from their waveguide or suspended stripline offerings.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
