AE904B11001

Overview

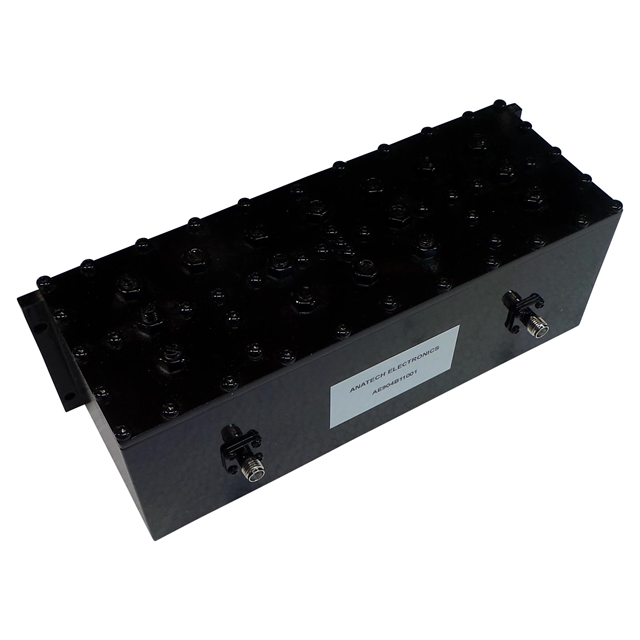

The AE904B11001 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 904.5 MHz and provides a bandwidth of 21 MHz. The component features an insertion loss of 1.5 dB and ripple of 0.5 dB. It utilizes SMA connectors for interface and is designed for chassis mounting. The maximum height of the module is 2.600 inches (66.04 mm).

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface
• Chassis mount design

Applications

• Radio frequency signal processing
• Communication systems filtering
• RF module integration

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector specifications. Ensure compatibility with existing chassis mounting hardware. Confirm that the SMA connector type matches system requirements. Check for any updates in the manufacturer's documentation regarding material composition or environmental ratings.

Selection Notes

Select this component when a 904.5 MHz center frequency with 21 MHz bandwidth is required. Consider the 1.5 dB insertion loss impact on system gain. Verify that the chassis mounting style fits the enclosure design. Ensure the SMA interface aligns with connected cable assemblies.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter series, specifically cavity bandpass filters. These components are designed for high-performance radio frequency applications requiring precise frequency selection. The AE904B11001 represents a standard offering in their lineup for communication system filtering needs.

Replacement Considerations

No public confirmed substitute part numbers are available.
