Product Detailed Parameters
- Description：RF FILTER BANDPASS 915MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：915MHz Center
- Bandwidth：26MHz
- Filter Type：Band Pass
- Ripple：0.2dB
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：7.835" L x 3.394" W (199.00mm x 86.20mm)
- Height (Max)：2.335" (59.30mm)
Download product information
Overview

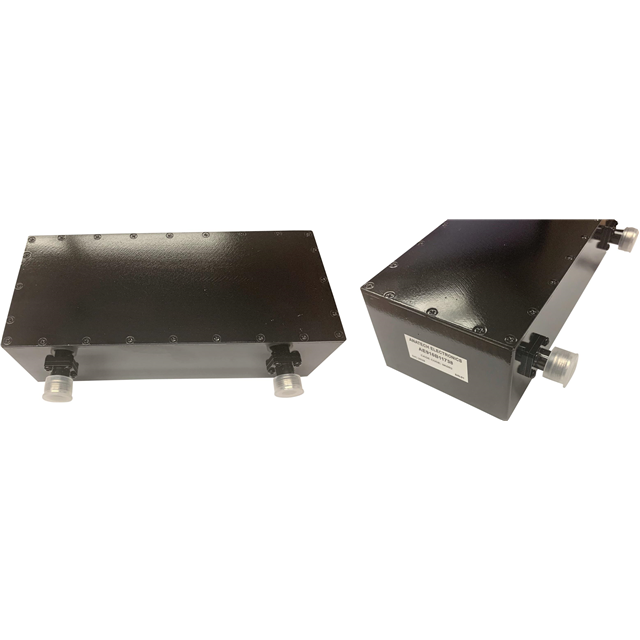

The AE915B11738 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 915 MHz and provides a bandwidth of 26 MHz. The module exhibits an insertion loss of 1 dB and a ripple of 0.2 dB. Its physical dimensions are 7.835 inches in length by 3.394 inches in width, equivalent to 199.00 mm by 86.20 mm.
Feature Summary
- Cavity construction for stable RF performance
- Bandpass filtering capability at 915 MHz
- Low insertion loss design
Applications
- Radio frequency signal processing
- Microwave communication systems
- Industrial scientific and medical (ISM) band applications
Procurement Notes
Verify the exact part number AE915B11738 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and physical module dimensions before procurement.
Selection Notes
Select this component when a 915 MHz bandpass filter with specific 26 MHz bandwidth and low ripple characteristics is required. Consider the module form factor and cavity construction for integration into RF systems needing precise frequency selection.
Part Context
Anatech Electronics Inc. specializes in the design and manufacturing of radio frequency and microwave filters. This company produces both standard and custom RF components for military and commercial applications, holding ISO 9001:2015 certification.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model. Consult manufacturer engineering databases for spec-matched alternatives if direct replacement is unavailable.
