AE917B11416

Overview

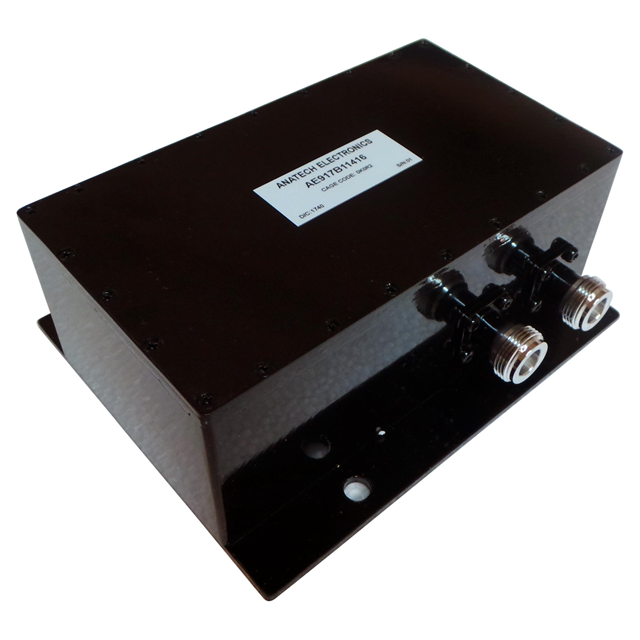

The AE917B11416 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 917MHz and provides a bandwidth of 14MHz at 3dB insertion loss. The component is designed for chassis mounting, ensuring secure installation in radio frequency systems requiring precise signal filtering capabilities.

Feature Summary

• Band pass filter configuration for selective frequency transmission
• Cavity construction for stable RF performance
• Chassis mounting design for structural integration

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific center frequency and bandwidth requirements against the 917MHz specification before procurement. Confirm that the chassis mounting style aligns with your enclosure design. Ensure compatibility with the 3dB insertion loss parameter for your system's signal integrity needs. Check RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when a fixed 917MHz center frequency is required. The 14MHz bandwidth defines the passband width for signal selection. Consider the chassis mounting type for mechanical stability. Evaluate the 3dB insertion loss impact on overall system gain. This part is suitable for applications needing dedicated cavity filter performance at this specific frequency.

Part Context

Anatech Electronics Inc. specializes in RF filters and components. The AE917 series includes various cavity band pass filters. This model targets specific frequency bands for radio frequency applications. The company provides datasheets detailing electrical and mechanical specifications for integration purposes.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Verify electrical parameters such as center frequency and bandwidth when selecting alternatives. Mechanical mounting differences may require adapter solutions.
