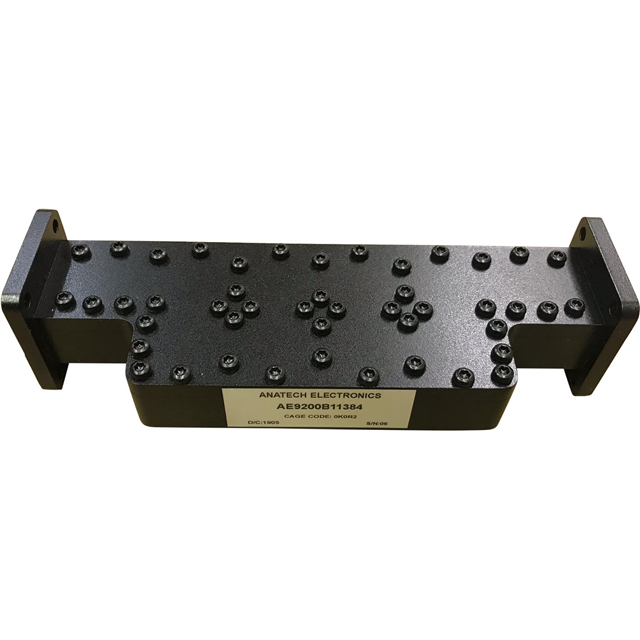

AE9200B11384

Overview

The AE9200B11384 is a bandpass RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 9.2 GHz and provides a bandwidth of 600 MHz. The component features an insertion loss of 0.8 dB. This device is designed for radio frequency applications requiring precise signal filtering within the specified microwave frequency range.

Feature Summary

• Bandpass filtering capability centered at 9.2 GHz
• Defined 600 MHz operational bandwidth
• Low insertion loss characteristic of 0.8 dB
• Module form factor construction

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF filter modules

Procurement Notes

Verify the specific electrical parameters, including center frequency and bandwidth, against official manufacturer documentation before integration. Confirm mechanical dimensions and mounting requirements to ensure compatibility with existing system designs. Ensure the supplier provides authentic components from Anatech Electronics Inc. to maintain performance reliability in critical RF applications.

Selection Notes

Select this component when a fixed 9.2 GHz center frequency with 600 MHz bandwidth is required. The low insertion loss makes it suitable for sensitive RF chains. Consider the module form factor for ease of integration into larger assemblies. Verify that the operating environment matches the component's specifications.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types, including bandpass, low pass, and high pass filters. The AE9200B11384 belongs to their line of RF filter modules designed for specific frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
