AE9370B10979

Overview

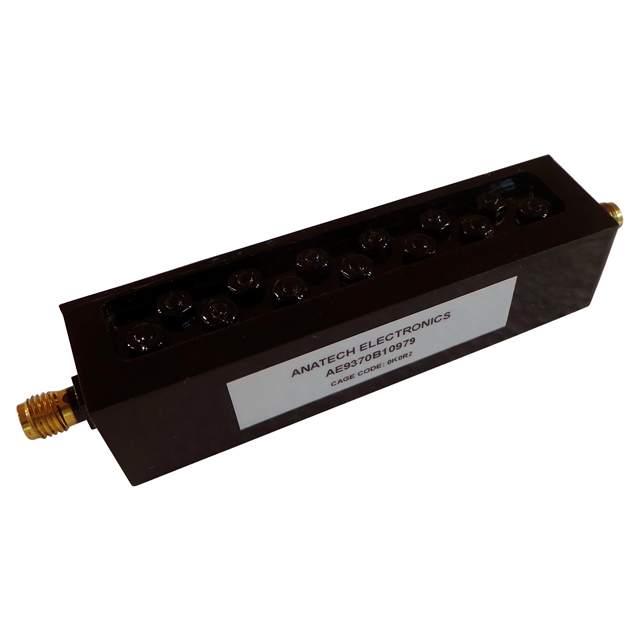

The AE9370B10979 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 9370 MHz and provides a bandwidth of 160 MHz, covering a passband from 9290 to 9450 MHz. The component features an input/output impedance of 50 Ohms and utilizes SMA female connectors. This module is engineered to deliver precise signal filtering characteristics within the specified microwave frequency range.

Feature Summary

• Cavity construction for stable RF performance
• SMA female connector interface
• Defined center frequency and bandwidth specifications

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF filter modules

Procurement Notes

Verify the specific datasheet version and electrical tolerances directly with Anatech Electronics Inc. or authorized distributors before integration. Confirm that the SMA connector type and 50 Ohm impedance match your system requirements. Ensure environmental operating conditions align with your application needs. Cross-reference part numbers to avoid confusion with similar models in the Anatech portfolio.

Selection Notes

Select this component when a fixed center frequency of 9370 MHz and a 160 MHz bandwidth are required. The 50 Ohm impedance must match the source and load circuits. Consider the physical dimensions and mounting method if space is constrained. Verify that the insertion loss and rejection specifications meet the system's noise and interference requirements.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom RF and microwave filters for military and commercial use. Founded in 1990, the company holds ISO 9001:2015 certification. The AE9370B10979 belongs to their line of cavity bandpass filters, which are known for high performance in demanding RF environments.

FAQ

What is the passband frequency range?

The passband ranges from 9290 MHz to 9450 MHz.

What type of connectors does the filter use?

The filter uses SMA female connectors.
