Product Detailed Parameters
- Description：RF FILTER HI PASS 9.5GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：9.5GHz (Cutoff)
- Bandwidth：14GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.142" L x 0.866" W (29.00mm x 22.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

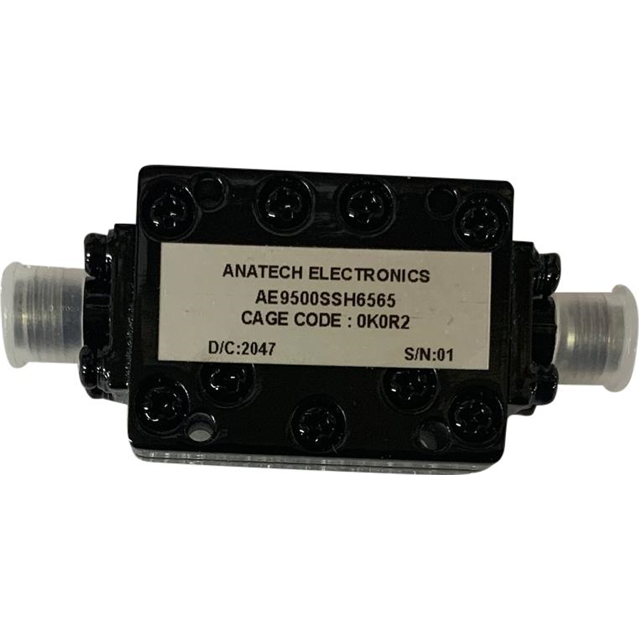

The AE9500SSH6565 is a suspended stripline high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 9.5 GHz and operates within a bandwidth up to 14 GHz. The component utilizes SMA connectors for interface connections and is housed in a module package with dimensions of 1.142 inches in length and 0.866 inches in width (29.00 mm x 22.00 mm). This design supports applications requiring precise high-frequency signal filtering.
Feature Summary
- Suspended stripline construction for stable RF performance
- High-pass filter topology with defined cutoff characteristics
- Integrated SMA connector interfaces for direct system integration
Applications
- RF signal processing systems
- Microwave communication equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version and electrical tolerances directly from the manufacturer before procurement. Confirm that the SMA connector orientation and mounting requirements align with your system design. Ensure environmental specifications meet operational needs, as detailed in the official product documentation.
Selection Notes
Select this component when a high-pass response starting at 9.5 GHz is required. The suspended stripline technology offers distinct advantages in power handling and consistency compared to planar technologies. Evaluate the module form factor against available board space and connector accessibility constraints.
Part Context
Anatech Electronics specializes in RF and microwave filters, including high-pass, low-pass, and band-pass designs. The AE9500SSH6565 belongs to their suspended stripline series, which is engineered for robust performance in demanding radio frequency environments. The company maintains ISO 9001:2015 certification for its manufacturing processes.
Replacement Considerations
Consult the manufacturer's engineering database for spec-matched alternatives. Custom designs may be available if exact parameters are not met by existing inventory. Verify compatibility with existing SMA interfaces and mechanical footprints when considering substitutes.
