AEACAC049018-S868

Antennas RF Overview

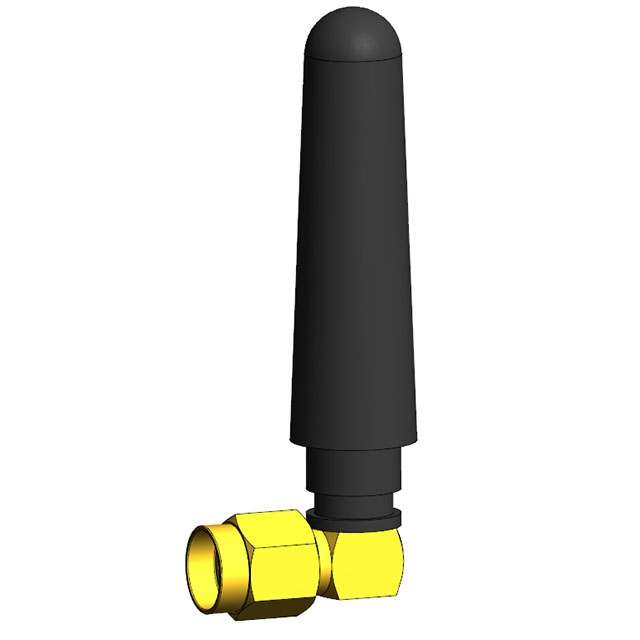

The AEACAC049018-S868 is a right-angle whip antenna designed for sub-GHz, LoRa, LPWA, and ISM applications. It operates within the 863-870 MHz frequency range with a nominal impedance of 50 Ohms. The component features an SMA male connector for mounting and provides a gain of 2 dBi. Physical dimensions include a length of 49.9 mm and a height of 18 mm. It supports an operating temperature range from -40°C to +85°C.

Antennas RF Feature Summary

• Right-angle whip design for compact integration
• SMA male connector termination
• Optimized for sub-GHz and LPWA bands

Antennas RF Applications

• LoRa telemetry systems
• LPWAN device connectivity
• ISM band wireless modules

Antennas RF Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm mechanical tolerances and electrical performance specifications. Ensure the SMA male connector type matches the host PCB or cable assembly requirements. Confirm RoHS compliance status if required by project regulations.

Antennas RF Selection Notes

Select this model when a low-profile, right-angle form factor is required for sub-GHz applications. The 50 Ohm impedance ensures compatibility with standard RF transceivers. Consider the physical length constraints as the whip extends significantly from the base. Verify that the operating temperature range meets the environmental conditions of the target deployment site.

Antennas RF Part Context

This component belongs to Abracon's external antenna portfolio, specifically targeting LPWA and IoT markets. It complements other sub-GHz solutions by providing a reliable radiating element for devices requiring robust signal transmission in constrained spaces. The product line focuses on standardized interfaces like SMA for ease of integration.

Antennas RF Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. Any replacement must match the 863-870 MHz frequency range, 50 Ohm impedance, and SMA male connector interface. Mechanical clearance for the 49.9 mm whip length must be verified before substitution.
