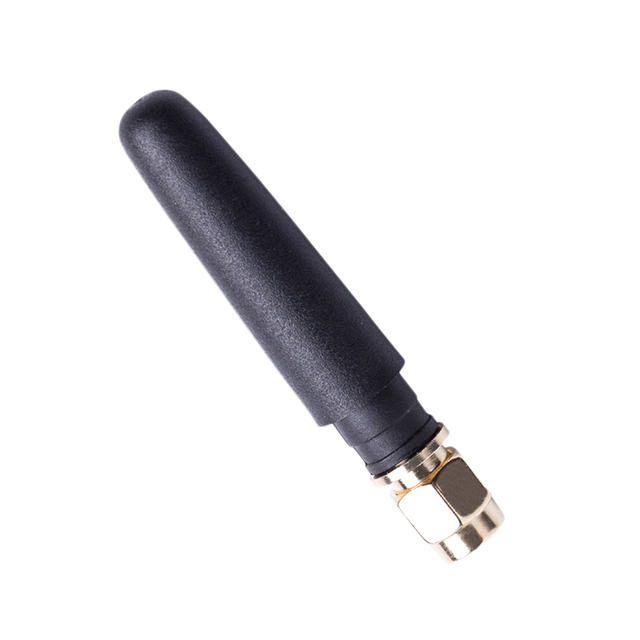

AEACAC053010-S433 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 433MHZ WHIP STR SMA MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEACAC053010-S433
- Description：RF ANT 433MHZ WHIP STR SMA MALE
- Series：AEAC
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：433MHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.102" (53.40mm)
- Applications：ISM, LoRa, Sigfox, Wi-Fi
- Power - Max：10 W
Antennas RF datasheet and documents for AEACAC053010-S433
Antennas RF Overview
The AEACAC053010-S433 is a passive monopole whip antenna manufactured by Abracon LLC, designed for automotive-grade applications. It operates at a frequency of 433 MHz with a gain of 2 dBi and an impedance of 50 Ohms. The unit features a VSWR of 2 and supports a power rating of 10 W. It utilizes an SMA male connector for panel mounting. The antenna exhibits linear polarization and measures 53.4 mm in length. It functions within a temperature range of -40 C to +125 C.
Antennas RF Feature Summary
- Automotive-grade construction suitable for harsh environments
- Monopole whip design with tilt/swivel capability
- Linear polarization for ISM band operations
Antennas RF Applications
- Automotive systems
- IoT devices
- RFID readers
- Remote technology monitoring
- Smart meters
Antennas RF Procurement Notes
Verify the specific suffix S433 confirms the 433 MHz frequency variant. Confirm the SMA male connector type matches the host interface. Ensure the panel mount style fits the enclosure design. Check RoHS compliance requirements against project specifications. Validate the operating temperature range meets environmental constraints.
Antennas RF Selection Notes
Select this component when a compact, automotive-rated antenna is required for sub-GHz ISM bands. The 50 Ohm impedance ensures compatibility with standard RF transceivers. The 10 W power handling allows for robust signal transmission. Consider the physical dimensions and mounting method during mechanical integration.
Antennas RF Part Context
This part belongs to the AEAC series of vehicle antennas from Abracon. It is categorized under ISM antennas for M2M and IoT applications. The product line focuses on reliable connectivity solutions for mobile and stationary platforms requiring stable RF performance in regulated frequency bands.
Antennas RF Replacement Considerations
Consult official Abracon documentation for direct substitutes. Verify that any alternative maintains the 433 MHz frequency, SMA male interface, and automotive-grade qualification. Ensure mechanical fit and electrical parameters match the original design requirements.
