AEACAC053010-S868

Antennas RF Overview

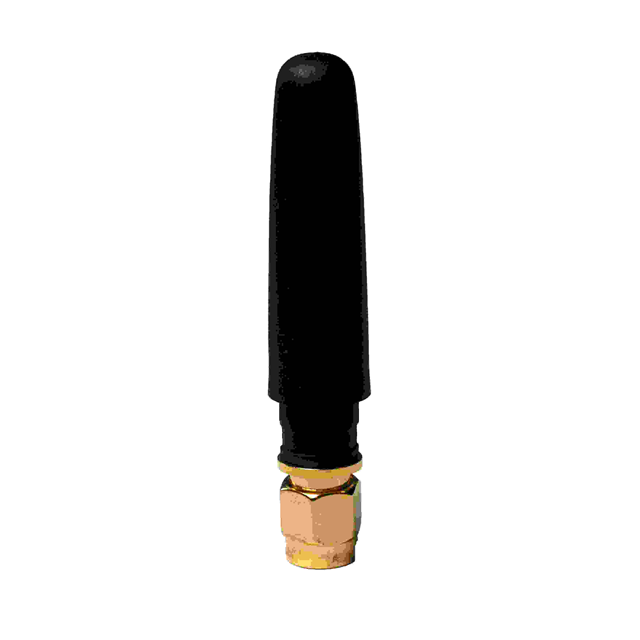

The Abracon AEACAC053010-S868 is an LPWA/ISM external antenna designed for operation at 868MHz. It features a compact, low-profile whip design with linear polarization. The component utilizes an SMA male connector and has a mechanical length of 53.4 mm. It supports frequencies up to 903 MHz and operates within a temperature range of +85 C maximum.

Antennas RF Feature Summary

• Compact low-profile whip antenna structure
• Linear polarization characteristics
• SMA male connector interface

Antennas RF Applications

• LPWA network integration
• ISM band telemetry systems
• External RF signal transmission

Antennas RF Procurement Notes

Verify the specific frequency designation (868MHz) against system requirements. Confirm the SMA male connector type matches the host device interface. Ensure the operating temperature rating aligns with environmental conditions. Cross-reference the manufacturer part number to avoid confusion with similar models in the series.

Antennas RF Selection Notes

Select this model for applications requiring a dedicated external antenna for LPWA or ISM band operations. The linear polarization suits standard orientation needs. Consider the physical dimensions and connector type during PCB layout and enclosure design to ensure proper clearance and mechanical stability.

Antennas RF Part Context

This component belongs to Abracon's LPWA/ISM external antenna series. It is engineered for wireless communication modules requiring reliable signal transmission in licensed or unlicensed spectrum bands. The design prioritizes space efficiency while maintaining effective radiation patterns for telemetry and data transfer.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RF front-end designs before considering alternative components from other manufacturers.
