AEACAC054010-S915

Antennas RF Overview

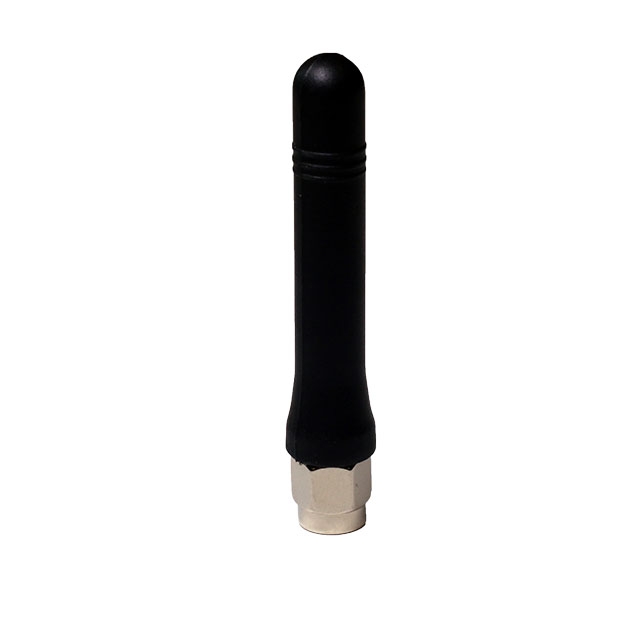

The Abracon AEACAC054010-S915 is an external LPWA/ISM whip antenna designed for operation in the 880-950 MHz and 915 MHz frequency bands. It features a compact, low-profile design with linear polarization and a gain of 2 dBi. The component utilizes an SMA male connector for interface and is constructed using Low Temperature Co-fired Ceramic (LTCC) technology. This antenna is RoHS compliant and certified under ISO9001-2015 standards, ensuring quality and environmental compliance for electronic assemblies.

Antennas RF Feature Summary

• Compact low-profile whip design suitable for space-constrained applications
• Linear polarization optimized for reliable signal transmission
• Constructed with Low Temperature Co-fired Ceramic materials
• SMA male connector interface for standard integration

Antennas RF Applications

• Motion monitoring systems
• Remote keyless entry devices
• Medical machines requiring telemetry

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure the correct connector type and frequency band alignment with system requirements. Confirm RoHS compliance status if required by regulatory frameworks. Check lead times as manufacturing schedules may vary. Ensure mechanical fitment matches the intended enclosure design prior to procurement.

Antennas RF Selection Notes

Select this model when a low-profile external antenna is required for LPWA or ISM band operations around 915 MHz. The linear polarization and 2 dBi gain provide balanced performance for short-range telemetry. Consider the SMA connector compatibility with existing RF circuits. LTCC construction offers durability for industrial environments.

Antennas RF Part Context

This component belongs to Abracon's LPWA/ISM external antenna series. It is part of a family of antennas designed for license-free industrial, scientific, and medical radio bands. The product line emphasizes compact form factors and reliable ceramic construction for various wireless communication protocols.

Antennas RF Replacement Considerations

Consult official Abracon documentation for direct substitutes. Verify that alternative parts match the 880-950 MHz frequency range and SMA connector type. Ensure equivalent gain and polarization characteristics are maintained for system performance continuity.
