AEACAC195013-S868 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 868MHZ WHIP TILT SMA ML. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEACAC195013-S868
- Description：RF ANT 868MHZ WHIP TILT SMA ML
- Series：AEAC
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：868MHz
- Frequency Range：837MHz ~ 884MHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：7.677" (195.00mm)
- Applications：ISM, LoRa, LPWAN, Sigfox
- Power - Max：-
Antennas RF datasheet and documents for AEACAC195013-S868
Antennas RF Overview

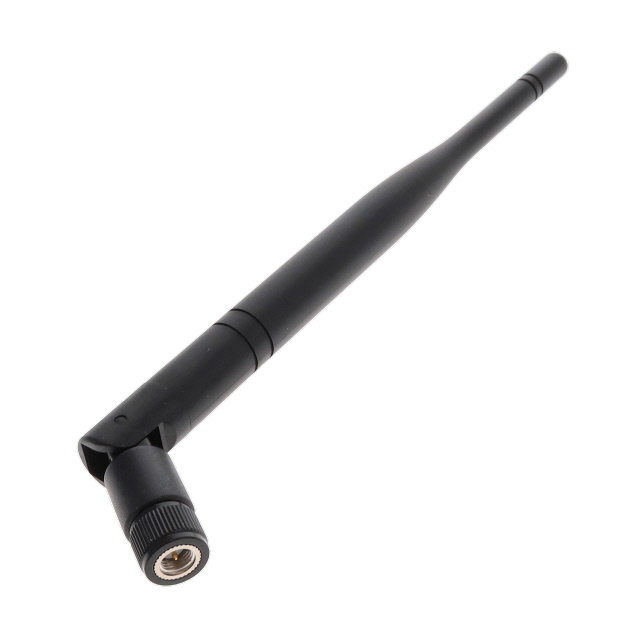

The Abracon AEACAC195013-S868 is an external whip antenna designed for Sub-GHz, LoRa, LPWA, and RFID applications within the 863–870 MHz frequency range. It features linear polarization and a nominal gain of 3 dBi with a VSWR less than 2.5. The unit measures Ø13 x 195 mm and utilizes a swivel SMA male connector for panel mounting.
Antennas RF Feature Summary
- Designed for ISM band telemetry and LPWA communications
- Features linear polarization for consistent signal transmission
- Includes a swivel SMA connector for flexible installation angles
Antennas RF Applications
- Sub-GHz wireless sensor networks
- LoRaWAN gateway installations
- LPWA module integration
- RFID reader systems
Antennas RF Procurement Notes
Verify the specific connector gender and thread type against the design schematic before procurement. Confirm that the operating temperature range meets the environmental requirements of the deployment site. Ensure the panel mount hole diameter matches the antenna base specifications to guarantee proper mechanical stability and sealing.
Antennas RF Selection Notes
Select this model when a dedicated external whip antenna is required for UHF ISM bands. It is suitable for applications needing higher gain than integrated PCB antennas. Consider the physical dimensions and panel mounting constraints during the enclosure design phase to ensure adequate clearance and structural support.
Antennas RF Part Context
This component belongs to Abracon’s AEAC series of general ISM RF antennas. It targets the UHF frequency group (300MHz ~ 1GHz) and is categorized as an indoor antenna solution. The part status is active, indicating ongoing manufacturing and availability for new designs.
Antennas RF Replacement Considerations
Consult official Abracon documentation for direct cross-references. Verify that any substitute maintains the same SMA connector interface and 868 MHz operational bandwidth. Ensure mechanical compatibility regarding mounting style and overall dimensions.
