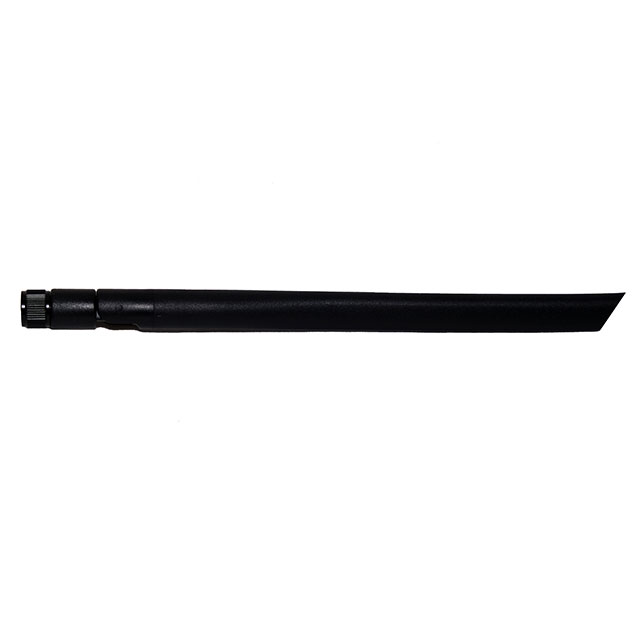

AEACAC198013-S5GNR

$10.15

Description：RF ANT 5GNR WHIP
Series：AEAC
Mfr：Abracon LLC
Package：Bulk

SKU:83ae97670e3a Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACAC198013-S5GNR is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 5GNR WHIP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACAC198013-S5GNR

Description：RF ANT 5GNR WHIP
Series：AEAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular, Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 2.2GHz, 3.55GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
Antenna Type：Whip, Tilt
Number of Bands：3
VSWR：3.5
Return Loss：-
Gain：3dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：7.795" (198.00mm)
Applications：4G, 5G, GPRS, LTE
Power - Max：-

Antennas RF datasheet and documents for AEACAC198013-S5GNR

AEACAC198013-S5GNR

Antennas RF Overview

The AEACAC198013-S5GNR is a cellular external whip antenna designed for LTE, 4G, 5G, and GPRS applications. It operates across three frequency bands: 698-960 MHz, 1710-2690 MHz, and 3300-3800 MHz, supporting 5G NR, CBRS, and Private LTE. The antenna features a 50 Ohm impedance, 3 dBi gain, and a VSWR of 3.5. With a length of 198 mm and SMA male termination, it utilizes connector mount panel mounting. Operating temperatures range from -40°C to +85°C.

Antennas RF Feature Summary

Supports multiple cellular standards including 5G NR, CBRS, and Private LTE across three distinct frequency bands.
Features a blade tilt/swivel style design with SMA male termination for flexible installation.
Constructed for robust environmental performance with an operating temperature range spanning -40°C to +85°C.

Antennas RF Applications

LTE Radios
Gateways and Routers
Set Top Boxes
Security Systems
Smart Metering

Antennas RF Procurement Notes

Verify the specific datasheet version ASR915E when procuring to ensure compliance with current regulatory requirements and mechanical drawings. Confirm that the SMA male connector matches the host device interface. Check for regional certification marks relevant to the intended deployment location, such as FCC or CE, to ensure legal operation in target markets.

Antennas RF Selection Notes

Select this model when multi-band support for emerging 5G NR and existing LTE networks is required in a single external unit. The 198 mm length and swivel design accommodate installations where line-of-sight optimization is critical. Ensure the application environment stays within the specified -40°C to +85°C thermal limits for reliable long-term performance.

Antennas RF Part Context

This component belongs to Abracon's AEAC series of high-performance internal and external antennas for connected applications. It is specifically engineered for cellular IoT and broadband connectivity solutions requiring reliable signal transmission in diverse environments.
