AEACAC198013-S698

Antennas RF Overview

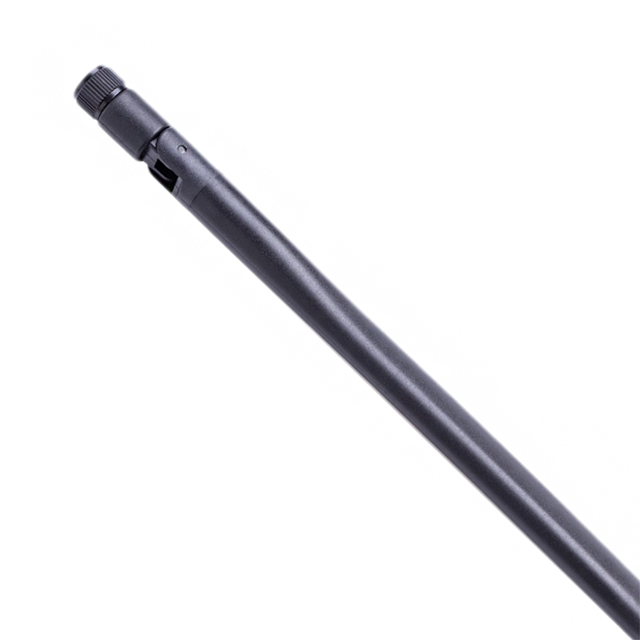

The Abracon AEACAC198013-S698 is a linear polarization whip antenna designed for LTE and cellular applications. It operates within the 700 MHz to 2655 MHz frequency range, supporting multiple bands including 4G LTE. The component features a tilt mechanism with an SMA male connector for panel mounting. It has a physical dimension of 198.0 mm in length and 13.0 mm in diameter. The antenna supports a power rating of 10 W and functions within a temperature range of -40°C.

Antennas RF Feature Summary

• Tilt-adjustable design for optimal signal alignment
• Linear polarization for consistent connectivity
• SMA male connector interface for secure attachment

Antennas RF Applications

• 4G LTE external connectivity modules
• Cellular communication devices
• IoT gateways requiring robust RF links

Antennas RF Procurement Notes

Verify that the specific S698 suffix corresponds to the required tilt angle and connector orientation for your enclosure. Confirm RoHS compliance status if environmental regulations apply to your deployment. Ensure the SMA male connector matches the mating port on your host device to prevent mechanical interference or signal loss during assembly.

Antennas RF Selection Notes

Select this model when adjustable azimuth alignment is critical for maintaining link quality in fixed installations. The whip form factor suits space-constrained panels where omnidirectional coverage is needed. Consider the 10W power handling if transmitting at high output levels. Verify that the operating frequency range fully encompasses all target cellular bands for your region.

Antennas RF Part Context

This part belongs to Abracon's external antenna portfolio, specifically engineered for wireless data transmission. It complements other RF components by providing reliable front-end connectivity. The series focuses on durability and performance in industrial and consumer electronics environments requiring stable cellular uplinks and downlinks.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific tilt configuration and connector type. Evaluate generic LTE whip antennas only if the tilt feature and exact dimensions are not mandatory constraints for the application.
