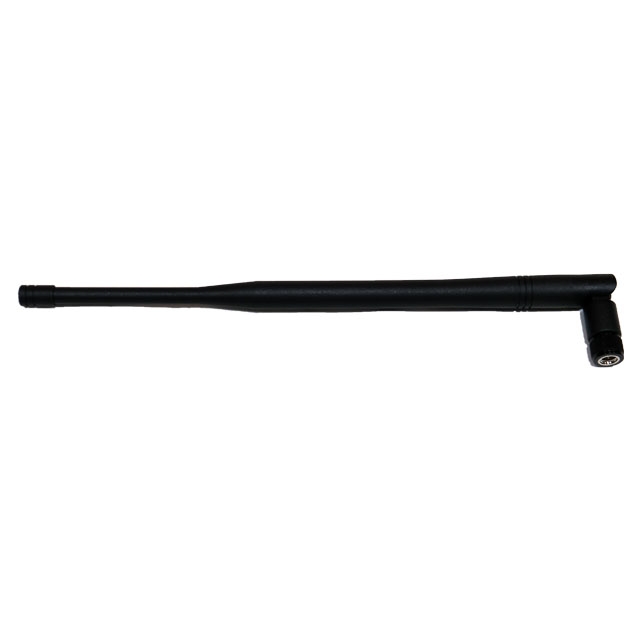

AEACAC254010-S169 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 915MHZ WHIP TILT SMA ML. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEACAC254010-S169
- Description：RF ANT 915MHZ WHIP TILT SMA ML
- Series：AEAC
- Mfr：Abracon LLC
- Package：Box
- RF Family/Standard：General ISM
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：169MHz
- Frequency Range：161MHz ~ 177MHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：10.000" (254.00mm)
- Applications：ISM, LoRa, LPWA
- Power - Max：-
Antennas RF datasheet and documents for AEACAC254010-S169
Antennas RF Overview
The Abracon AEACAC254010-S169 is a passive external whip antenna designed for indoor wireless communication applications. It operates within the 161 to 177 MHz frequency range, with a minimum specified frequency of 166 MHz and a bandwidth center frequency tolerance of ±8 MHz. The component provides a gain of 2 dBi with linear polarization and utilizes an SMA connector for interface. It supports panel mounting and functions reliably within an operating temperature range of -40°C to 85°C.
Antennas RF Feature Summary
- External whip design suitable for indoor environments
- Linear polarization with 2 dBi gain
- SMA connector interface for reliable attachment
- Panel mounting style for stable installation
Antennas RF Applications
- Wireless communication systems in the ISM band
- UHF/VHF receiver installations
- Indoor telemetry data collection
- Remote monitoring equipment integration
Antennas RF Procurement Notes
Verify the specific frequency requirement against the 161-177 MHz operational range before procurement. Confirm that the SMA connector type matches the host device interface. Ensure the panel mounting configuration aligns with the physical enclosure design. Check RoHS compliance documentation if environmental regulations apply to the final assembly.
Antennas RF Selection Notes
Select this model when a compact external whip antenna is required for indoor use. The 2 dBi gain is sufficient for short-range indoor links. The wide operating temperature range ensures stability in varying environmental conditions. Verify that the SMA connector polarity and gender match the system requirements.
Antennas RF Part Context
This component belongs to Abracon's line of passive RF antennas. It is categorized under indoor antennas and ISM band solutions. The product is designed for general wireless communication tasks requiring reliable signal transmission in the UHF spectrum. It complements other Abracon RF components by providing standardized connectivity.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Ensure compatibility with existing SMA interfaces when considering alternatives. Verify that any replacement meets the same frequency and gain specifications.
