AEACAD097015-S698

Antennas RF Overview

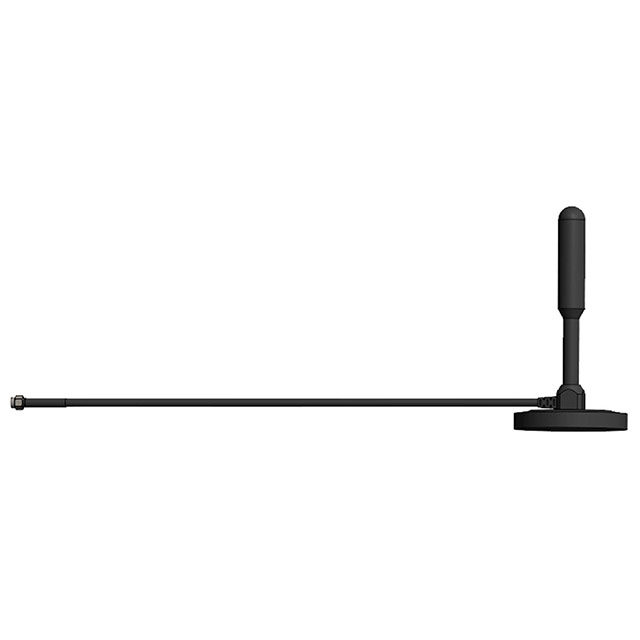

The Abracon AEACAD097015-S698 is an external whip antenna designed for cellular communication protocols including GSM, GPRS, 4G, and LTE. It operates within a frequency range of 700 MHz to 2.7 GHz with a nominal impedance of 50 Ohms. The component features a stubby physical form factor measuring 97 mm in length and utilizes an SMA connector for interface. It employs magnetic mounting termination and provides omni-directional radiation characteristics suitable for IoT and M2M applications.

Antennas RF Feature Summary

• Supports multiple cellular standards including GSM, GPRS, 4G, and LTE
• Features a low-profile stubby whip design with magnetic mount
• Utilizes standard SMA connector interface
• Provides omni-directional signal coverage

Antennas RF Applications

• 4G/LTE radios and gateways
• IoT and M2M connectivity devices
• Security systems requiring cellular backhaul
• Set-top boxes with cellular capabilities

Antennas RF Procurement Notes

Verify the specific SMA connector gender and mating requirements against your host device interface before procurement. Confirm that the magnetic mounting base is compatible with the installation surface material and geometry. Ensure the operating temperature range meets environmental conditions. Cross-reference the frequency specifications with local regulatory bands for target markets.

Antennas RF Selection Notes

Select this model when an external, magnetically mounted solution is required for cellular IoT or gateway applications. The 97 mm height offers a balance between gain and profile constraints compared to longer whip antennas. Consider the SMA interface compatibility and ensure sufficient clearance around the mounting area for optimal radiation performance without obstruction.

Antennas RF Part Context

This component belongs to the Abracon AEAC series of RF antennas engineered specifically for Internet of Things (IoT) connectivity. The series includes various configurations such as MIMO and internal PCB options, but this specific part represents the external whip category. It addresses the need for reliable cellular connectivity in devices where internal antennas may be constrained by size or material interference.

Antennas RF Replacement Considerations
