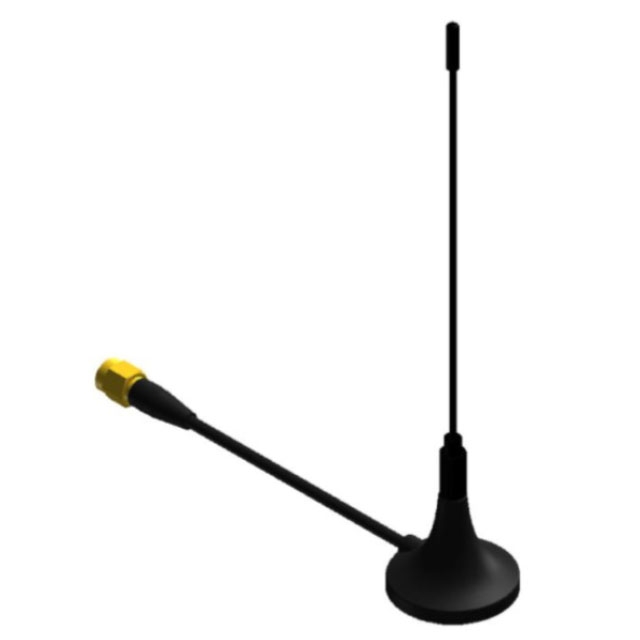

AEACAD153029-S433

$8.49

Description：RF ANT 433MHZ -960MHZ WHIP SMA
Series：AEAC
Mfr：Abracon LLC
Package：Bulk

SKU:9ee257d15d79 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACAD153029-S433 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 433MHZ -960MHZ WHIP SMA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACAD153029-S433

Description：RF ANT 433MHZ -960MHZ WHIP SMA
Series：AEAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：General ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：433MHz, 868MHz, 915MHz
Frequency Range：433MHz ~ 960MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：4.5
Return Loss：-
Gain：3dBi
Features：-
Termination：SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：6.035" (153.30mm)
Applications：ISM, LoRa, LPWAN, Sigfox
Power - Max：-

Antennas RF datasheet and documents for AEACAD153029-S433

AEACAD153029-S433

Antennas RF Overview

The AEACAD153029-S433 is a sub-Hz external whip antenna manufactured by Abracon LLC. It operates within the 433 MHz to 960 MHz frequency range, providing a gain of 3 dBi and an input impedance of 50 ohms. The unit features a straight SMA connector for termination and utilizes magnetic mounting for installation. Maximum height is specified at 153.30 mm (6.035 inches).

Antennas RF Feature Summary

Magnetic mounting style for flexible placement.
SMA connector termination type.
Linear polarization design.

Antennas RF Applications

ISM band communications
LoRa networks
LPWAN systems
Sigfox applications

Antennas RF Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm datasheet version compatibility with specific project requirements. Ensure SMA connector mating integrity and magnetic surface preparation for optimal RF performance. Check regional availability status prior to finalizing procurement plans.

Antennas RF Selection Notes

Select this model for sub-GHz ISM and LPWA applications requiring magnetic attachment. Verify frequency coverage matches target LoRa or Sigfox bands. Confirm SMA interface compatibility with host device ports. Assess spatial constraints against maximum height specification.

Antennas RF Part Context

This component belongs to Abracon's external RF antenna portfolio designed for wireless telemetry and IoT connectivity. It supports various low-power wide-area network protocols operating in sub-1 GHz spectrum ranges.
