AEACAQ190012-S2400

Antennas RF Overview

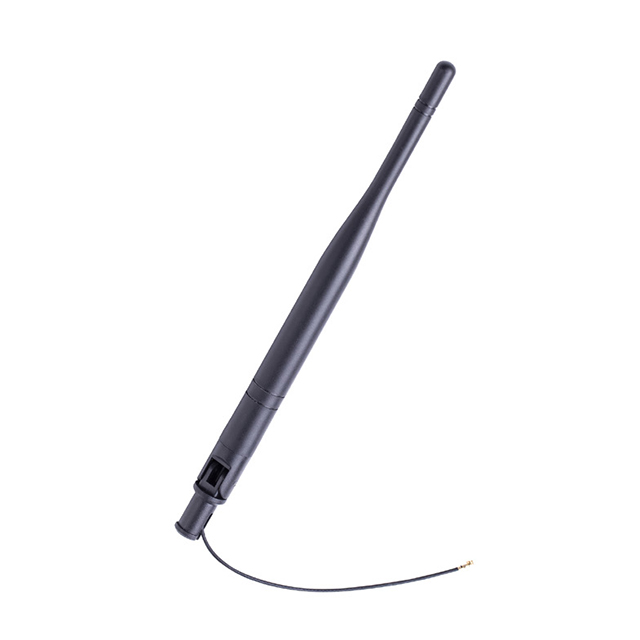

The Abracon AEACAQ190012-S2400 is a linearly polarized whip antenna designed for ISM band applications. It operates within the 2.4 GHz to 2.4835 GHz frequency range, supporting Wi-Fi, Bluetooth, WLAN, and Zigbee protocols. The component features a maximum gain of 5.0 dBi and maintains a VSWR of ≤ 2.0. It handles up to 10W input power and functions across a temperature range of -40°C to +85°C. The antenna utilizes an adhesive mounting method and connects via a straight U.FL (UMCC) or I-PEX MHF1 connector.

Antennas RF Feature Summary

• Linear polarization for reliable signal transmission in compact spaces
• Adhesive mounting design for secure integration without mechanical fasteners
• Supports multiple wireless standards including Wi-Fi and Bluetooth
• Robust performance across wide industrial temperature ranges

Antennas RF Applications

• Wi-Fi routers and access points
• ISM band wireless communication systems
• Bluetooth-enabled devices
• Zigbee network nodes

Antennas RF Procurement Notes

Verify the specific connector type required for your PCB layout, as this model supports both U.FL and I-PEX MHF1 interfaces. Confirm that the adhesive backing is compatible with your enclosure material to ensure long-term stability. Check RoHS compliance status if environmental regulations apply to your production line. Ensure the operating environment stays within the specified -40°C to +85°C thermal limits for optimal performance.

Antennas RF Selection Notes

Select this antenna when space constraints prevent the use of larger external antennas but higher gain than chip antennas is needed. Its adhesive mount simplifies assembly compared to screw-mount alternatives. Consider the 5.0 dBi gain for improved range in indoor environments. Verify that the 10W power rating exceeds your transmitter output to prevent damage. Ensure the U.FL/MHF1 connector matches your RF cable or board interface.

Antennas RF Part Context

This component belongs to Abracon's line of RF antennas tailored for short-range wireless communications. It addresses the need for high-performance connectivity in consumer electronics and IoT devices where size and mounting simplicity are critical. The design focuses on maintaining signal integrity in the crowded 2.4 GHz spectrum while offering durability through its adhesive construction and wide temperature tolerance.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Abracon catalogs for direct replacements with identical specifications or updated series equivalents.
