AEACBA045015-SG2

Antennas RF Overview

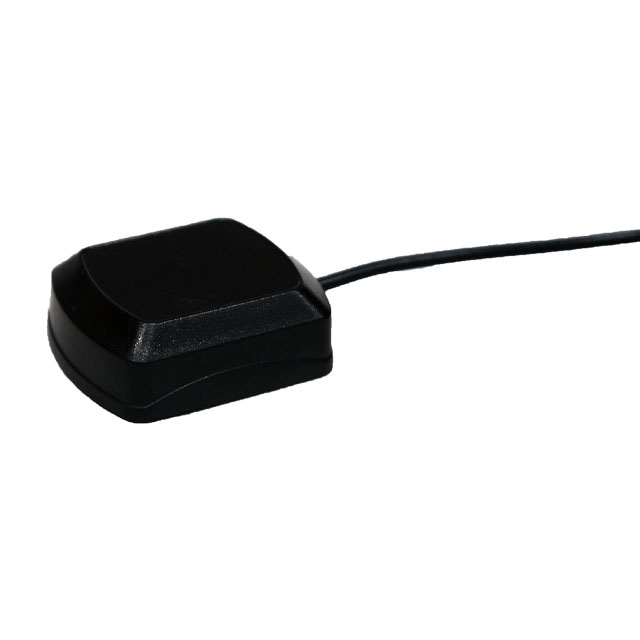

The Abracon AEACBA045015-SG2 is an active GNSS L1 adhesive puck antenna designed for outdoor use. It operates within a frequency range of 1.561 GHz to 1.602 GHz, supporting GPS, GLONASS, Galileo, and Beidou protocols. The unit features a 5 dBi gain and includes a 3-meter RG174 cable terminated with an SMA male connector. It provides IP67 environmental protection and utilizes adhesive mounting.

Antennas RF Feature Summary

• Active GNSS L1 design with integrated LNA and filter
• IP67 rated enclosure for outdoor durability
• Adhesive mount installation format

Antennas RF Applications

• GPS navigation systems
• GLONASS positioning modules
• GNSS tracking devices

Antennas RF Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to confirm compatibility with your system requirements. Ensure that the SMA male connector interface matches your receiver input. Confirm that the adhesive mounting method suits your installation surface and environmental conditions before finalizing procurement.

Antennas RF Selection Notes

Select this component when an external active GNSS solution is required for L1 band reception. The choice is driven by the need for high gain (5 dBi) and robust weather resistance (IP67). The included 3-meter cable length offers flexibility in placement relative to the receiving electronics.

Antennas RF Part Context

This model belongs to Abracon's AEAC series of external antennas. It is categorized as an outdoor GNSS puck antenna. The product line supports multiple global navigation satellite systems including GPS and GLONASS. It is distinct from passive or internal antenna variants.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
