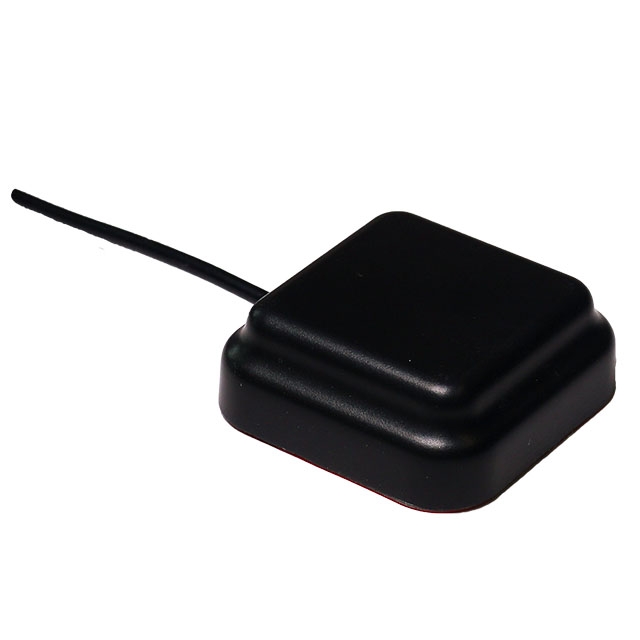

AEACBA050018-SG3 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT MULTIBAND MOD SMA ML ADH. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEACBA050018-SG3
- Description：RF ANT MULTIBAND MOD SMA ML ADH
- Series：AEAC
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：1.561GHz ~ 1.602GHz
- Antenna Type：Module
- Number of Bands：3
- VSWR：1.5
- Return Loss：-
- Gain：5dBi
- Features：LNA
- Termination：SMA
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.708" (18.00mm)
- Applications：Beidou, Galileo, GLONASS, GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for AEACBA050018-SG3
Antennas RF Overview
The AEACBA050018-SG3 is an active multiband GNSS antenna designed for high-precision positioning applications. It supports GPS, GLONASS, BeiDou, and Galileo satellite systems. The unit features an IP67 rating for environmental protection and includes a 3-meter RG174 cable terminating in an SMA male connector. It utilizes adhesive mounting for secure installation.
Antennas RF Feature Summary
- Supports multiple global navigation satellite systems including GPS, GLONASS, BeiDou, and Galileo
- IP67 rated enclosure for weather resistance
- Active design with integrated low-noise amplifier
- Adhesive mounting configuration
Antennas RF Applications
- High-accuracy positioning modules
- Marine navigation equipment
- Surveying instruments
- Geospatial data collection devices
Antennas RF Procurement Notes
Verify the specific revision suffix to ensure compatibility with existing RF interfaces. Confirm that the SMA male connector matches the receiving device port type. Check the cable length specification against system integration requirements. Ensure the adhesive backing is suitable for the target surface material.
Antennas RF Selection Notes
Select this component when multi-constellation support is required for improved satellite visibility. Consider the IP67 rating for outdoor or harsh environment deployments. Evaluate the fixed cable length as it cannot be extended without signal degradation. Verify power supply requirements for the active internal circuitry.
Antennas RF Part Context
This model belongs to Abracon's active GNSS antenna portfolio. It is engineered for applications demanding reliable satellite signal acquisition across multiple frequency bands. The design prioritizes accuracy and durability in mobile and stationary tracking scenarios.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed for this specific active multiband configuration. Alternative solutions may require custom impedance matching and power supply adjustments.
