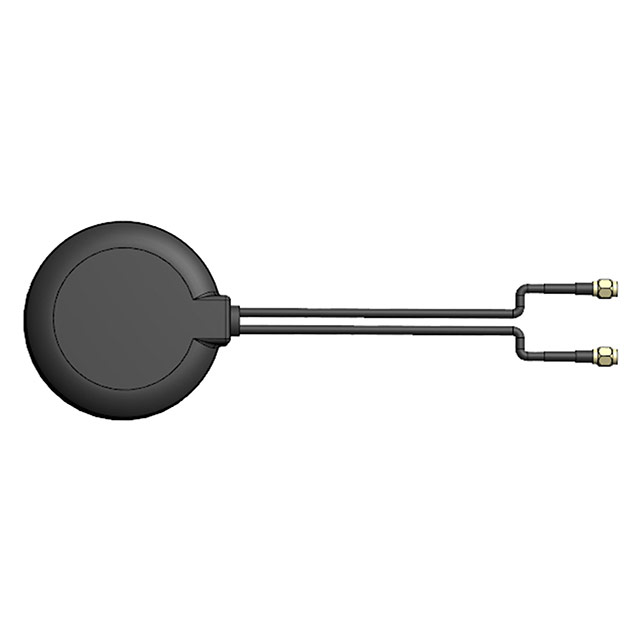

AEACBA081014-M698

$24.70

Description：RF ANT 2X2 4G/LTE MIMO
Series：AEAC
Mfr：Abracon LLC
Package：Bulk

SKU:72f66950126f Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACBA081014-M698 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 2X2 4G/LTE MIMO. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACBA081014-M698

Description：RF ANT 2X2 4G/LTE MIMO
Series：AEAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：829MHz, 2.2GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type：Dome
Number of Bands：2
VSWR：3
Return Loss：-
Gain：3dBi
Features：Cable - 2m
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.571" (14.50mm)
Applications：4G, LTE
Power - Max：-

Antennas RF datasheet and documents for AEACBA081014-M698

AEACBA081014-M698

Antennas RF Overview

The Abracon AEACBA081014-M698 is a 2x2 4G/LTE MIMO external antenna designed for adhesive mounting. It features an IP67 rating and operates within a frequency range of 698-960 MHz and 1710-2690 MHz. The unit includes a 2-meter RG174 cable terminating in an SMA male connector. Constructed from ABS material, the puck-style antenna measures Φ81.6 x 14.5 mm with a maximum operating temperature of +85°C. It supports linear polarization and maintains a VSWR of 3.0 at 50 ohms impedance.

Antennas RF Feature Summary

Supports 2x2 MIMO technology for enhanced 4G/LTE signal reception
IP67 rated enclosure ensures protection against dust and water ingress
Adhesive mount design facilitates secure installation on various surfaces
Integrated 2-meter RG174 cable with SMA male connector for connectivity

Antennas RF Applications

IoT cellular modules requiring robust LTE connectivity
Industrial equipment needing weather-resistant antennas
Vehicle telematics systems
Fixed wireless access points

Antennas RF Procurement Notes

Verify that the specific order matches the AEACBA081014-M698 part number to ensure correct frequency bands and connector type. Confirm IP67 sealing integrity requirements for the intended environment. Check lead times as manufacturing schedules may vary. Ensure the host device interface is compatible with the included SMA male connector and RG174 cable specifications before finalizing procurement.

Antennas RF Selection Notes

Select this model when dual-channel LTE performance is required in harsh environments. The IP67 rating makes it suitable for outdoor or industrial applications where moisture and dust resistance are critical. The adhesive mount simplifies integration into compact enclosures. Consider the 2-meter cable length for routing flexibility between the antenna and the RF module.

Antennas RF Part Context

This component belongs to Abracon's IoT antenna portfolio, specifically engineered for cellular connectivity solutions. It represents a specialized MIMO solution distinct from single-band or standard omnidirectional antennas. The product line focuses on providing reliable communication for embedded systems and connected devices across global LTE bands.
