AEACBA081016-C2LG

Antennas RF Overview

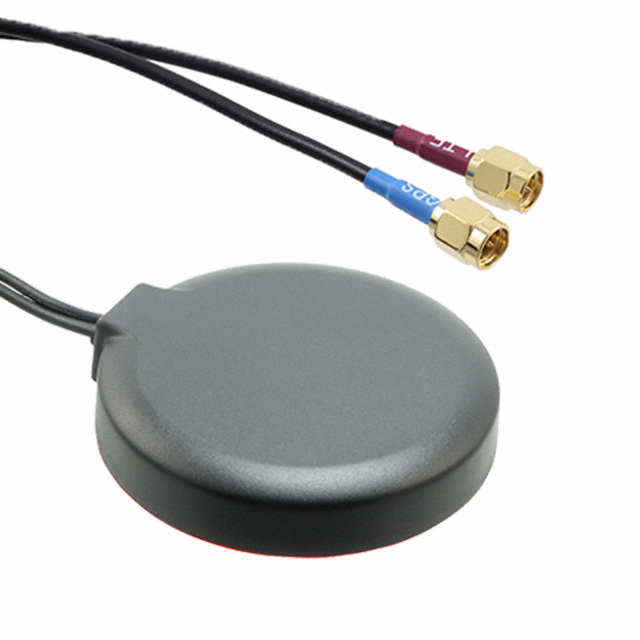

The Abracon AEACBA081016-C2LG is a dual-band active external antenna designed for LTE and GPS applications. It supports cellular protocols including 2G, 3G, 4G, GSM, NB-IoT, and LTE, alongside GNSS and GPS signals. The unit operates within a frequency range of 698 MHz to 2.69 GHz for cellular bands and 1575.42 ± 3 MHz for GPS. Key specifications include a gain of 2.5 dBi for cellular and 2.0 dBic for GPS. The physical dimensions are Ø81.6 x 16.2 mm with an IP67 rating. It utilizes an SMA male connector attached via 3M RG174 cable and features adhesive mounting.

Antennas RF Feature Summary

• Combines LTE cellular and GPS reception in a single compact puck module
• IP67 rated enclosure ensures protection against dust and water ingress
• Active design incorporates internal amplification for signal enhancement
• Adhesive mounting base allows for secure installation on various surfaces

Antennas RF Applications

• IoT gateways requiring simultaneous cellular and location tracking
• Telematics units for vehicle tracking and fleet management
• Outdoor industrial monitoring equipment
• Connected medical devices needing reliable positioning and data transmission

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and cable length. Confirm that the active component requirements align with the system power supply capabilities. Ensure the adhesive mounting surface is compatible with the specified environmental conditions. Check RoHS compliance status if restricted substances are mandated by the project regulations.

Antennas RF Selection Notes

Select this model when both cellular connectivity and precise GPS positioning are required in a single form factor. The IP67 rating makes it suitable for harsh outdoor environments where weather resistance is critical. Consider the active nature of the antenna for applications requiring extended range or weak signal recovery. Verify that the SMA male interface is compatible with the host device's RF port.

Antennas RF Part Context

This component belongs to Abracon’s external combo antenna series, specifically engineered for multi-protocol communication. It integrates LTE and GNSS functionalities into a unified mechanical structure. The product line targets applications demanding robust wireless performance in constrained spaces. It serves as a solution for devices needing to maintain constant connectivity while tracking geographic location.

Antennas RF Replacement Considerations

AEACBK050048-C2LG is a screw-mount alternative from the same manufacturer offering similar frequency coverage.
